Port Chicago self contained Ceiling / wall surface mounted IP65 13W 3500K Automatic self test

Article number G3D14602
zoom_in Zoom

  • Description

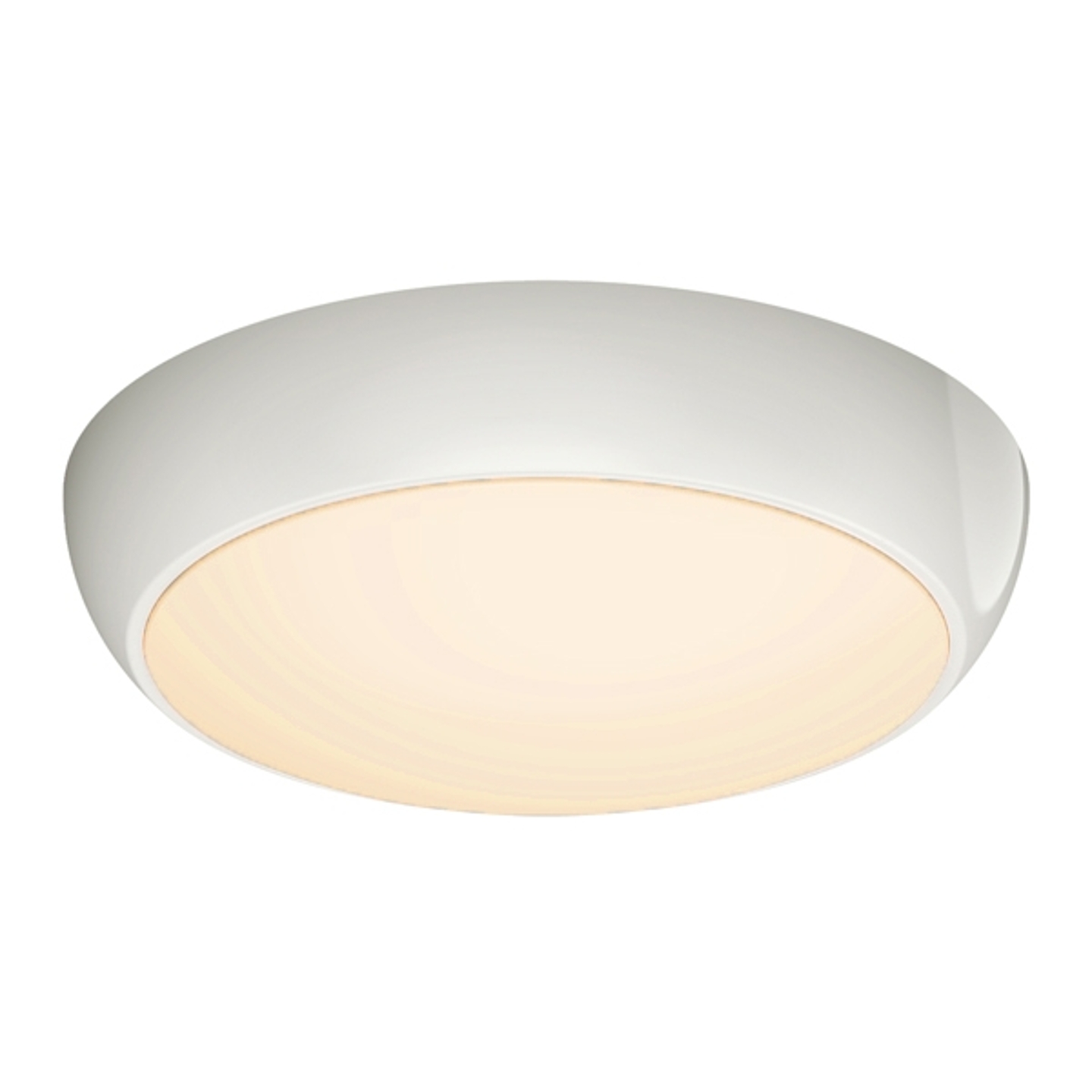

    Round surface mounted gallery luminaire which is easy to install. Suitable for both wall and ceiling mounting. Impact resistant with an IP65 value, very handy in places with a lot of traffic. Effective luminous flux of 970 lumens, so even dark corners are well lit.

    Application
    Gallery flats, offices, reception areas, shops, supermarkets, presentation areas and musea

    Type
    Port Chicago

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5

  • Downloads

    descriptionDownload Spacingtabellen descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Plus
    • Article number G3D14602
    • Kind Gallery Lighting
    • Suitable for wall mounting Yes
    • Suitable for ceiling mounting Yes
    • Suitable for surface mounting Yes
    • Lamp type LED not exchangeable
    • Housing material Plastic
    • Surface protection housing Untreated
    • Housing colour White
    • Material cover Plastic, opal
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Colour consistency (McAdam ellipse) SDCM5
    • Energy efficiency class of the light source according to EU regulation 2019/2015 F
    • Rated life time L70/B50 at 25 °C (h) 75000
    • Degree of protection (IP) IP65
    • Impact strength IK07
    • Protection class I
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Suitable for emergency lighting Yes
    • Emergency power supply integrated Yes
    • Max. system power (W) 13
    • Luminaire efficacy (lm/W) 85
    • Rated luminous flux according to IEC 62722-2-1 (lm) 1100
    • Colour of light White
    • Colour temperature (K) 3500 - 3500
    • Colour rendering index CRI 80-89
    • Power factor 0,90
    • Height/depth (mm) 110
    • Outer diameter (mm) 343
    • Type of wiring Ending
    • Number of poles 4
    • Conductor cross section (mm²) 0,50
    • Connection type Push-in clamp
    • Colour of light adjustable No
    • Luminous flux adjustable No
    • Beam angle adjustable No
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
