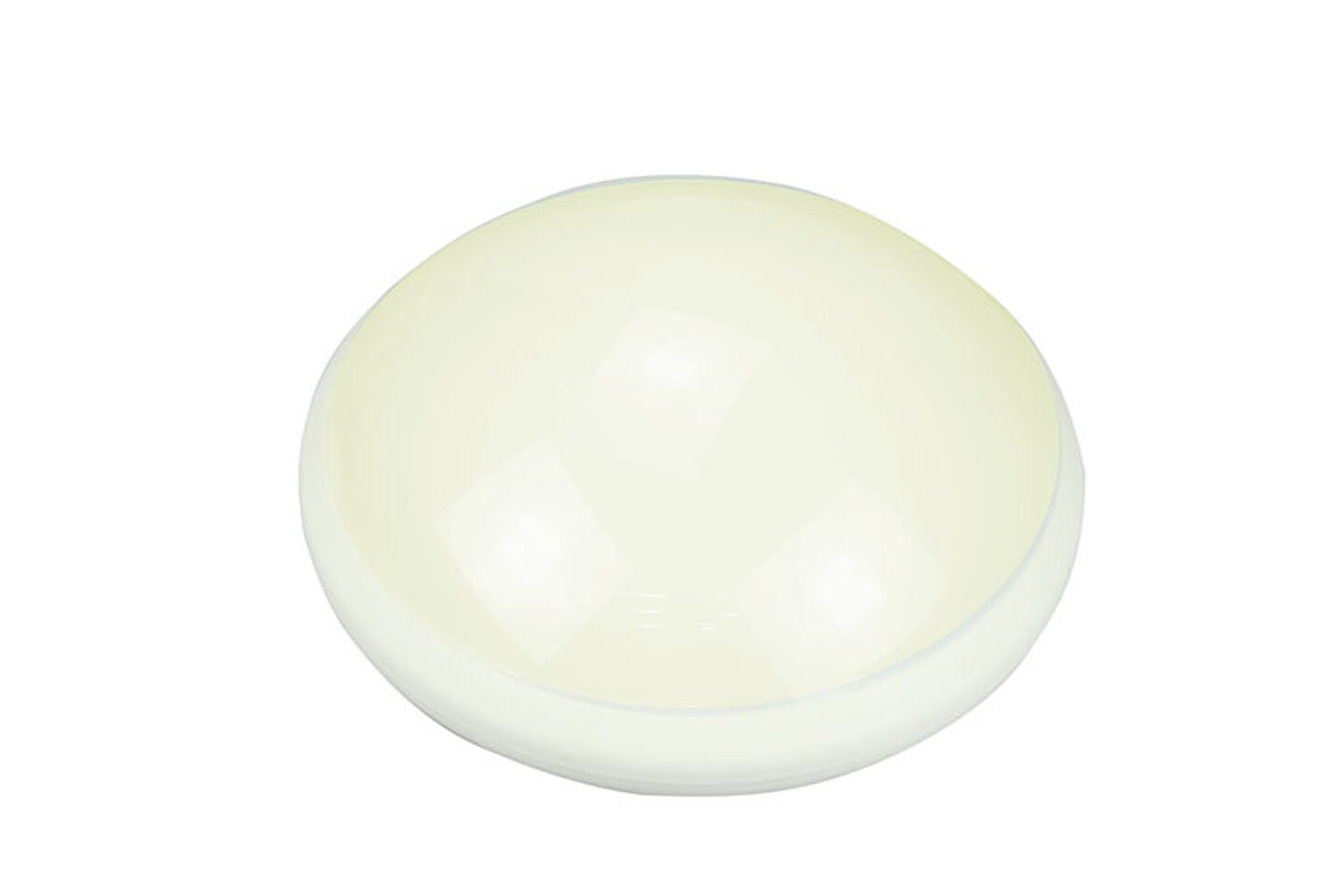

Port Auckland self contained Wall / ceiling surface mounted IP65 11W

Article number G2D14601
zoom_in Zoom

  • Description

    Subtle gallery/portico emergency luminaire with 3500 Kelvin. IP 65, so can be used in dusty and humid areas. Impact resistant and robust with IK07 value. Also available without emergency function, this variant is on request.

    Application
    Gallery flats, offices, reception areas, shops, supermarkets, presentation areas and musea

    Type
    Port Auckland

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3

  • Downloads

    descriptionDownload Handleiding descriptionDownload Spacingtabellen descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Basic
    • Article number G2D14601
    • Kind Gallery Lighting
    • Suitable for wall mounting Yes
    • Suitable for ceiling mounting Yes
    • Suitable for surface mounting Yes
    • Lamp type LED not exchangeable
    • Lamp holder Other
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, opal
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Colour consistency (McAdam ellipse) SDCM5
    • Energy efficiency class of the light source according to EU regulation 2019/2015 F
    • Rated life time L70/B50 at 25 °C (h) 50000
    • Degree of protection (IP) IP65
    • Impact strength IK07
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Suitable for emergency lighting Yes
    • Emergency power supply integrated Yes
    • Max. system power (W) 10
    • Luminaire efficacy (lm/W) 80
    • Rated luminous flux according to IEC 62722-2-1 (lm) 800
    • Colour of light White
    • Colour temperature (K) 3500 - 3500
    • Colour rendering index CRI 80-89
    • Power factor 0,90
    • Height/depth (mm) 100
    • Outer diameter (mm) 235
    • Type of wiring Ending
    • Number of poles 4
    • Conductor cross section (mm²) 0,50
    • Connection type Push-in clamp
    • Colour of light adjustable No
    • Luminous flux adjustable No
    • Beam angle adjustable No
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
Article number G2D14601

Port Auckland self contained Wall / ceiling surface mounted IP65 11W
