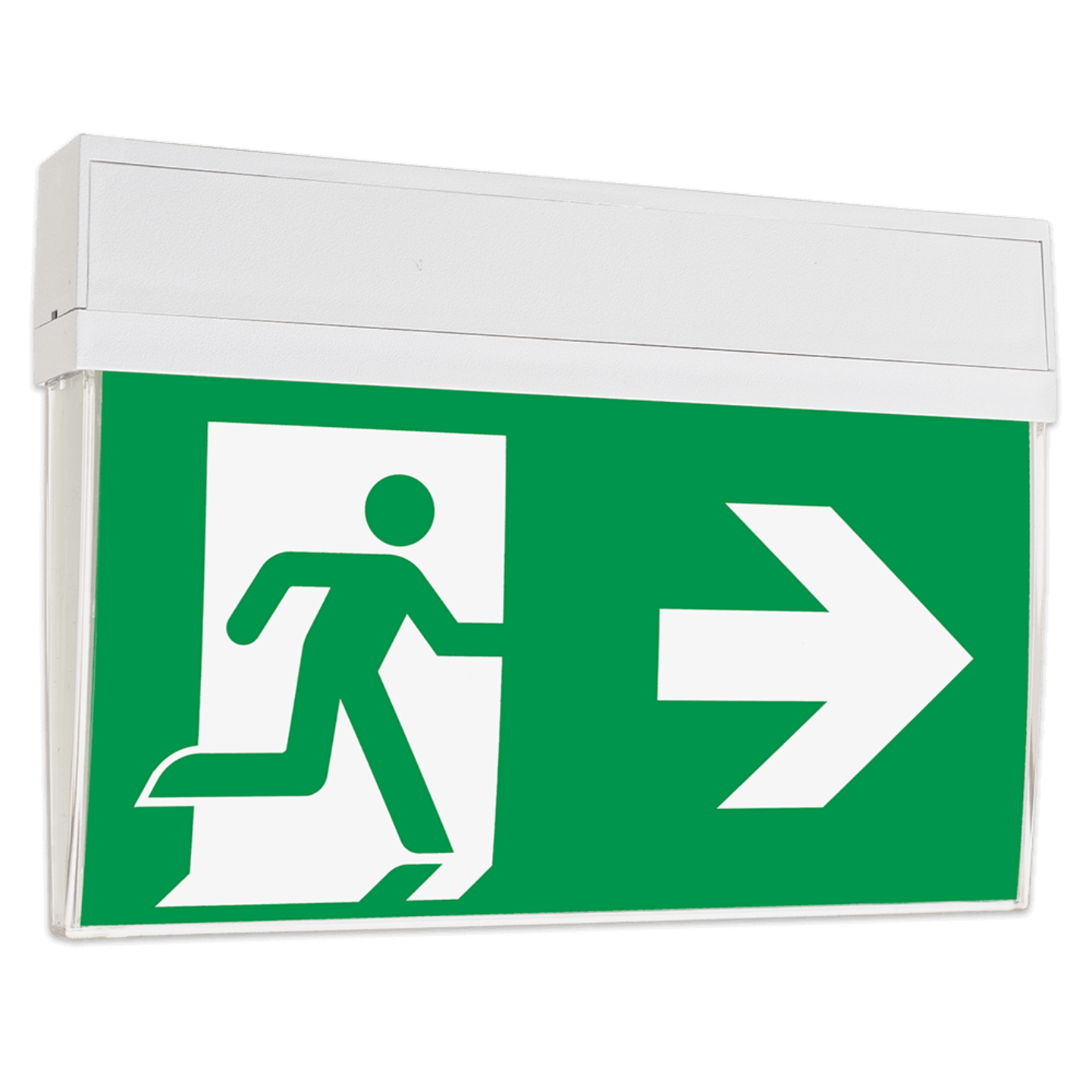

Slim Lisbon Self contained Ceiling / wall surface mounted Automatic self test 23 m. IP43 Incl. Picto

Article number PV6D512112
  • Description

    Slim Lisbon is a surface mounted luminaire and can also be installed as a recessed luminaire in combination with recessed frame A561401. Extremely versatile emergency lighting luminaire. Ideal for the real professional. This powerful member of the Taurac Premium line is suitable for both wall and ceiling mounting. By means of a recessed frame it can also be used as a recessed luminaire. With a nominal lifetime of 100,000 hours, 5 year warranty and stylish design, this is the runner of the (near) future.

    Application
    Offices, stores, schools, hospitality, museums, health care and educational institutions

    Type
    Slim Lisbon

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7 keurmerk_8
  • Downloads

  • Specifications

    • Brand Taurac Premium
    • Article number PV6D512112
    • Kind V-cover
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP43
    • Impact strength IK04
    • Protection class II
    • Max. system power (W) 2,20
    • Rated luminous flux according to IEC 62722-2-1 (lm) 130
    • Power factor 4,50
    • Recognition distance (m) 23
    • Nominal operation time (h) 1 - 1
    • Width (mm) 265
    • Height/depth (mm) 184
    • Length (mm) 37
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Rechargeable
    • Attribute Decentral, auto test, standard
    • Unit Piece
    • Warranty (months) 60
Article number PV6D512112

Slim Lisbon Self contained Ceiling / wall surface mounted Automatic self test 23 m. IP43 Incl. Picto
