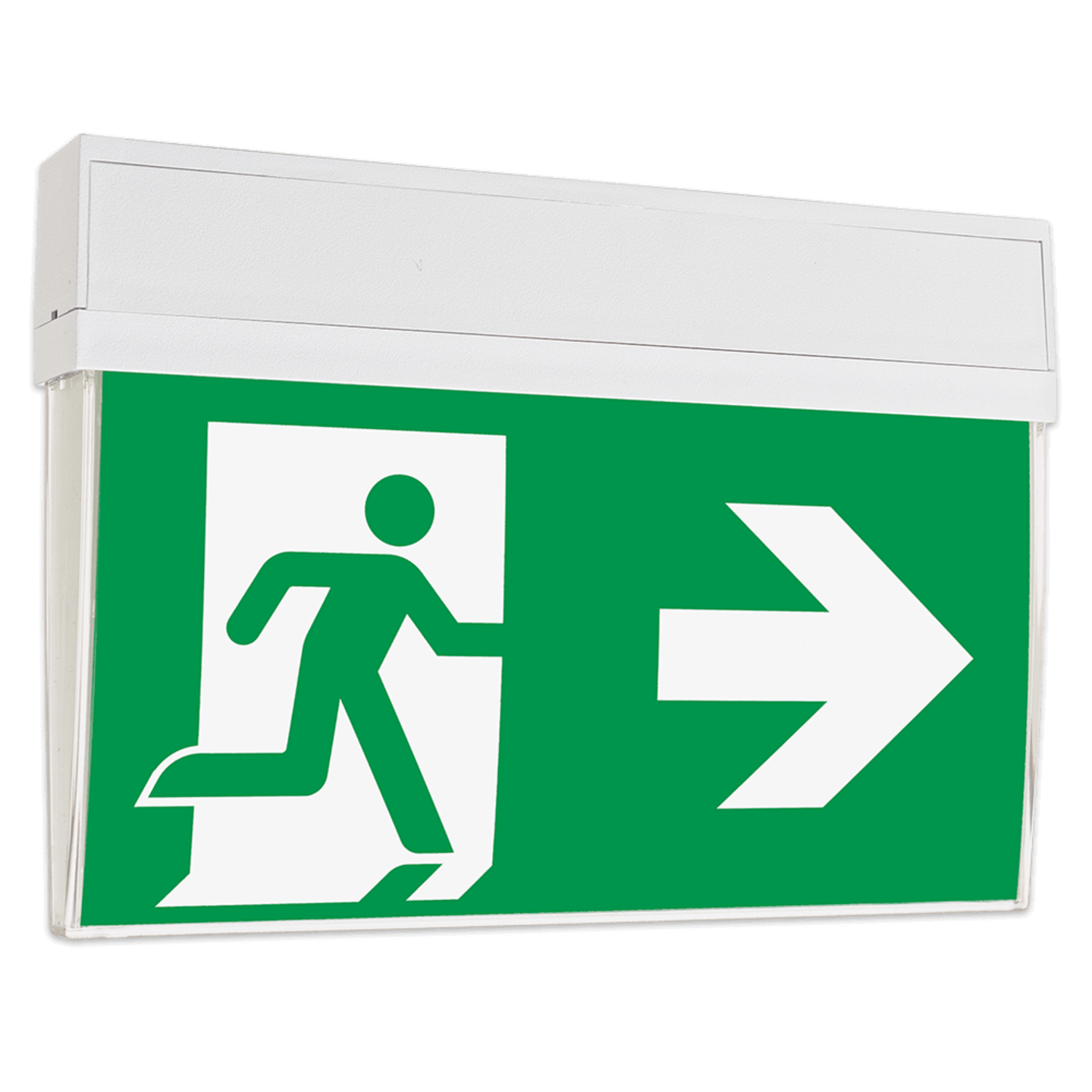

Slim Lisbon Central battery system Ceiling / wall surface mounted Stand. 23 m. IP43 Incl. Picto

Article number PV6C592110
  • Description

    Extremely versatile emergency lighting fixture. Ideal for the real professional. This powerful member of the Taurac Premium line is suitable for both wall and ceiling mounting. By means of a recessed frame also usable as a recessed luminaire. With a nominal lifetime of 100,000 hours, 5 year warranty and stylish design, this is the runner of the (near) future.

    Application
    Offices, stores, schools, hospitality, museums, health care and educational institutions

    Type
    Slim Lisbon

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7
  • Downloads

  • Specifications

    • Brand Taurac Premium
    • Article number PV6C592110
    • Kind V-cover
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment None
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Central (central battery)
    • Battery quality Lead
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP43
    • Impact strength IK04
    • Protection class II
    • Max. system power (W) 2,50
    • Rated luminous flux according to IEC 62722-2-1 (lm) 130
    • Power factor 4,50
    • Recognition distance (m) 23
    • Width (mm) 265
    • Height/depth (mm) 184
    • Length (mm) 37
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Attribute Decentral, standard
    • Unit Piece
    • Warranty (months) 60
Article number PV6C592110

Slim Lisbon Central battery system Ceiling / wall surface mounted Stand. 23 m. IP43 Incl. Picto
