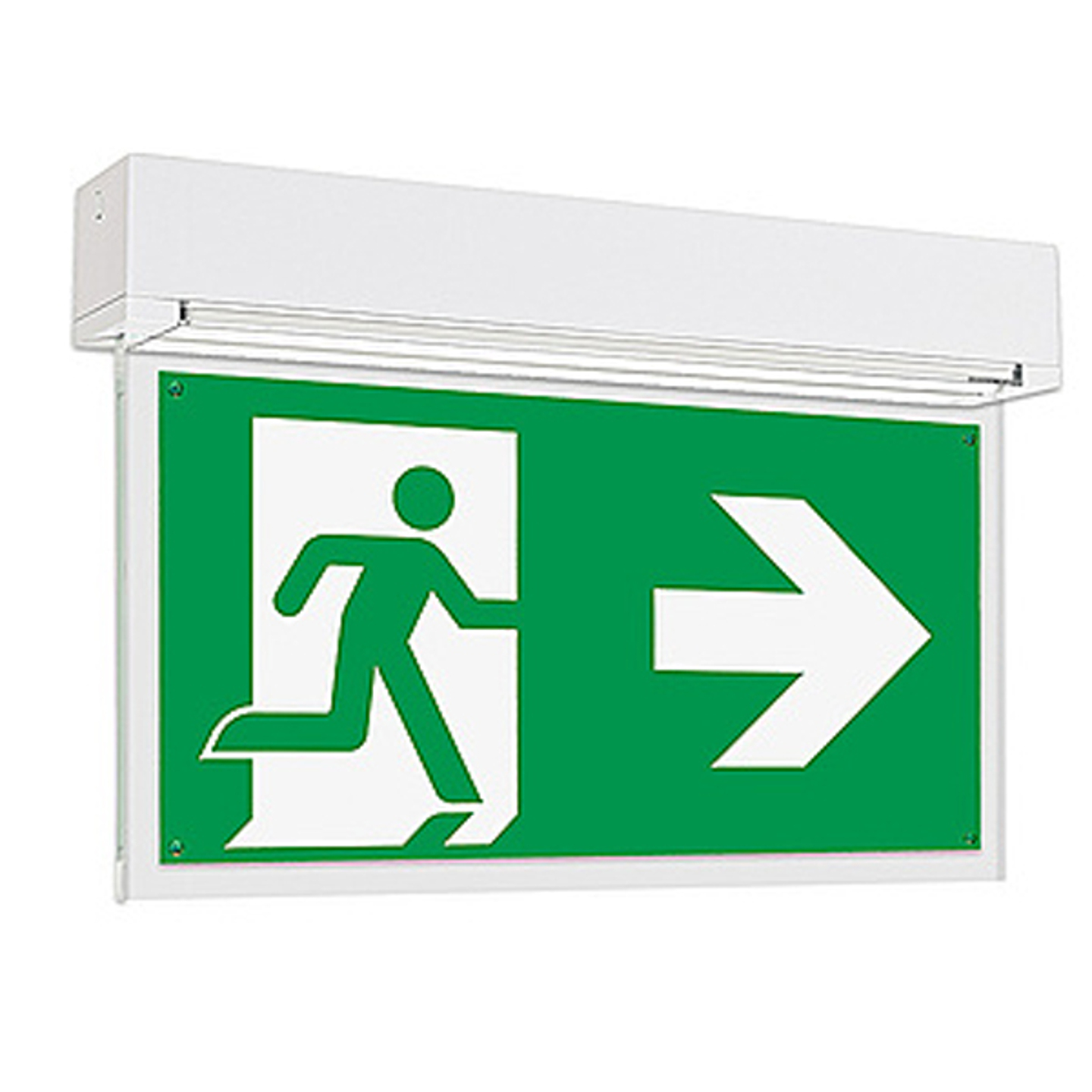

Universal London Central battery system Ceiling / wall surface mounted standard IP65, incl. picto

Article number PE8C591110

Zoom

Description

Combination luminaire available in both emergency lighting, signaling and as a combination. Wall/ceiling mounting, and by means of a mounting frame also easy to build in. This IP65 luminaire with Plexiglas plate is a rare combination in the market. Also available with a special lens technology making the installation height up to 23 meters. 5 year warranty.

Type
Universal London

Approvals
Downloads

Download Factsheet Download Handleiding Testprocedures
Specifications
Brand Taurac Premium

Article number PE8C591110

Mounting method Wall surface mounting/ceiling surface mounting

Function Escape route lighting/signage

Suitable for labelling type Acrylic plate

Type of indicator Single/double-sided

With pictogram Yes

Monitoring equipment None

Power supply system Central (central battery)

Battery quality Lead

Lamp type LED not exchangeable

With light source Yes

Lamp holder None

Housing material Plastic

Housing colour White

Material cover Plastic, transparent

Voltage type DC

Nominal voltage (V) 230 - 230

Type of control gear LED operating device current-controlled

Light distributor Diffuser lens/optic/panel

Rated life time L70/B50 at 25 °C (h) 100000

Degree of protection (IP) IP65

Impact strength IK04

Protection class II

Max. system power (W) 4,30

Rated luminous flux according to IEC 62722-2-1 (lm) 380

Luminous flux in standby mode (lm) 380

Power factor 6

Width (mm) 336

Height/depth (mm) 225

Length (mm) 59

Type of wiring Suitable for through wiring

Connection type Plug-in connection

Attribute central, standard

Unit Piece

Warranty (months) 60
