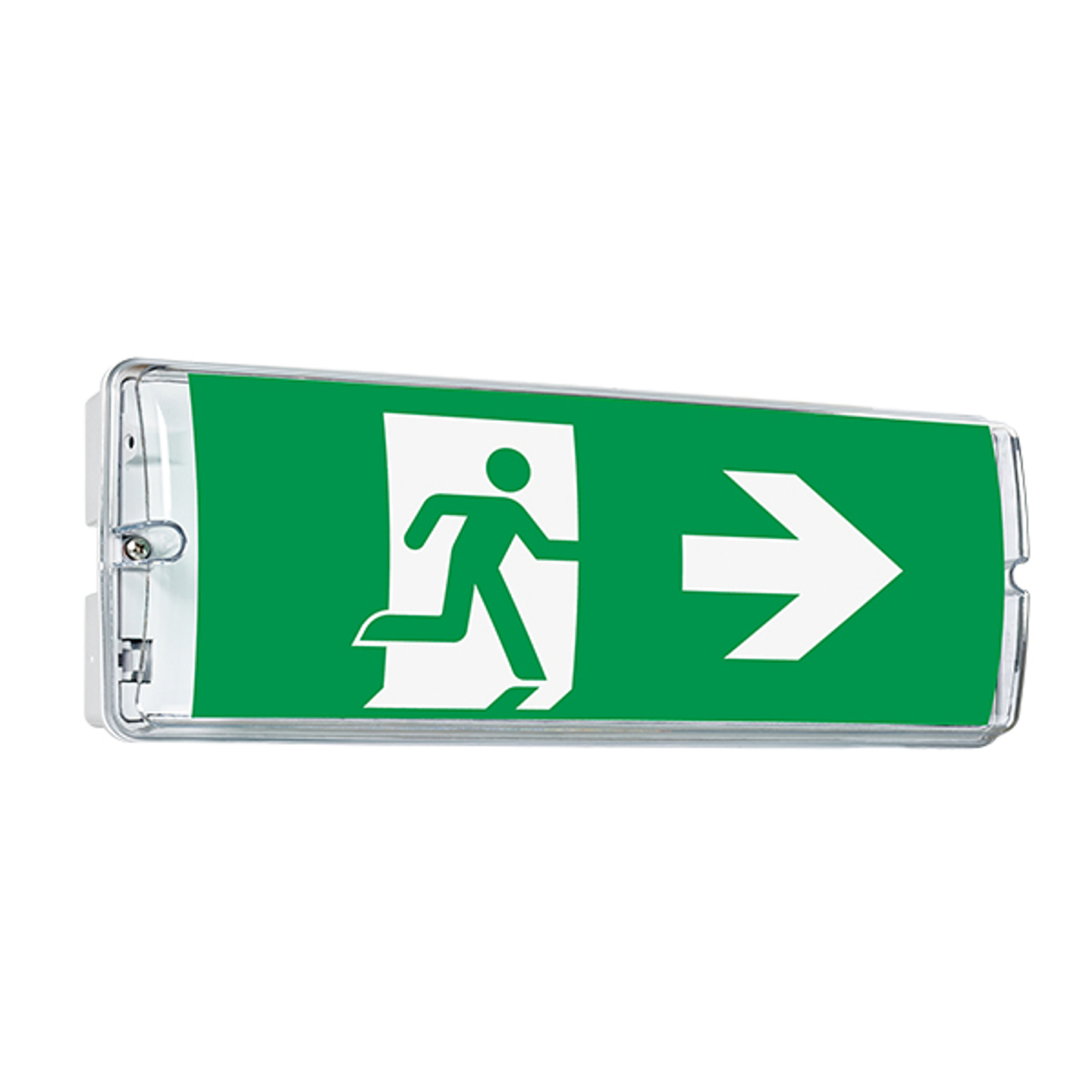

Bulk Berlin Central battery system Wall surface mounted Stand. 23 m. IP65 Incl. Picto

Article number PB5C192110

Zoom

Description

Robust Bulkhead from the Premium line. Impact and shock resistant allowing for use in sports complexes and outdoor venues, among others. Has an effective luminous flux of 190 lumens with only 1.5 watts. Suitable for wall mounting and has battery heating as an additional feature. Easy escape route indicator. Lifetime of 100,000 hours and up to 5 years warranty. IFS certified.

Application
Swimming pools, food processing companies, sports centres en other locations subject to extreme conditions.

Type
Bulk Berlin

Approvals
Downloads

Download Handleiding Testprocedures
Specifications
Brand Taurac Premium

Article number PB5C192110

Kind Bulkhead

Mounting method Wall surface mounted

Function Escape route signage

Suitable for labelling type Sticker

With pictogram Yes

Monitoring equipment None

Wiring system Continuous circuit/emergency circuit

Power supply system Central (central battery)

Battery quality Lead

Lamp type LED not exchangeable

With light source Yes

Lamp holder None

Housing material Plastic

Housing colour White

Material cover Plastic, transparent

Voltage type DC

Nominal voltage (V) 230 - 230

Type of control gear LED operating device current-controlled

Light distributor Diffuser lens/optic/panel

Rated life time L70/B50 at 25 °C (h) 100000

Degree of protection (IP) IP65

Impact strength IK08

Protection class II

Max. system power (W) 5

Rated luminous flux according to IEC 62722-2-1 (lm) 190

Power factor 5

Recognition distance (m) 23

Width (mm) 37

Height/depth (mm) 140

Length (mm) 90

Type of wiring Suitable for through wiring

Connection type Plug-in connection

Attribute Central, standard

Unit Piece

Warranty (months) 60
