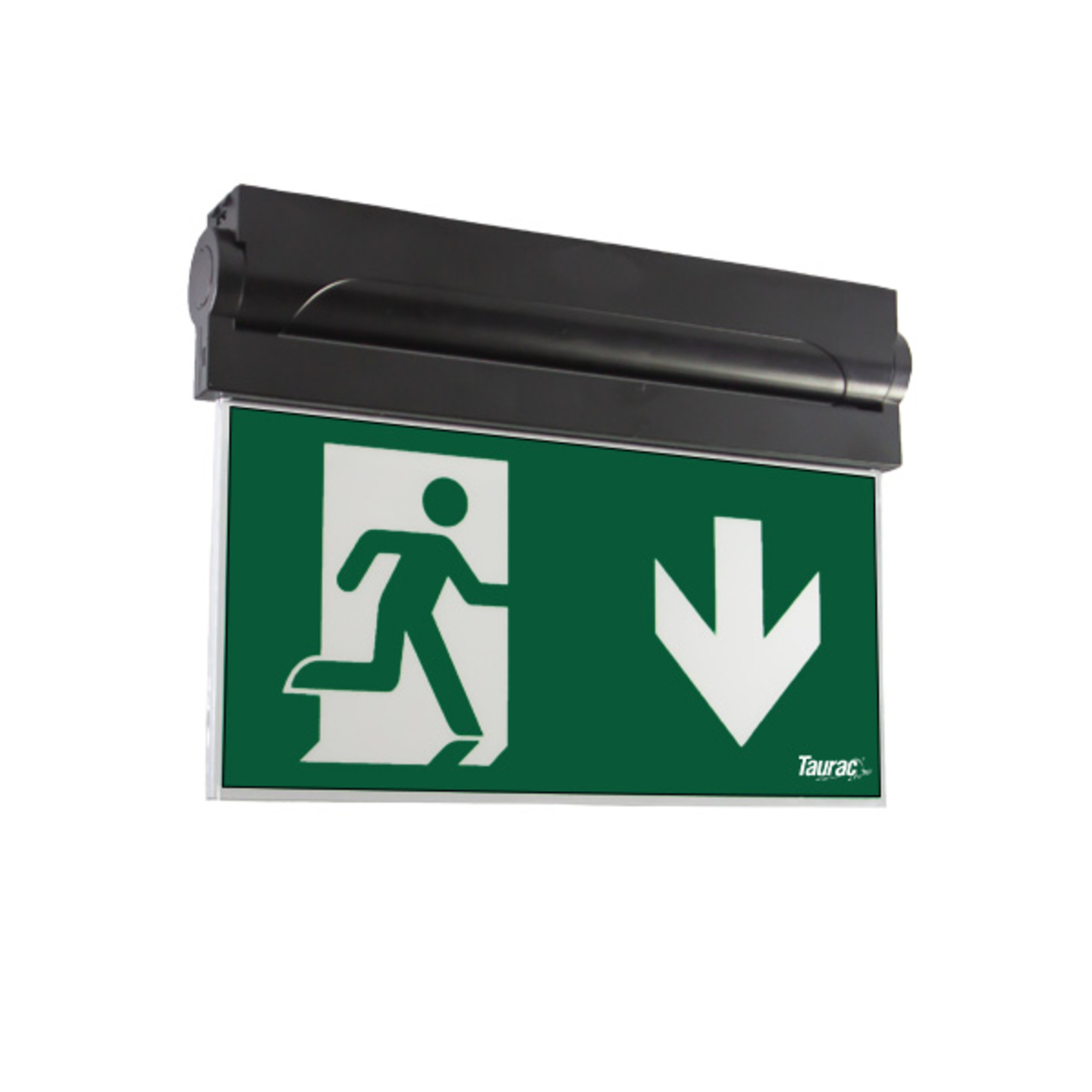

Taurac Plex Portland self contained wall / ceiling mounted, automatic self test 30 m, IP20 black

Article number E3D14603-B
zoom_in Zoom

  • Description

    Plex Portland is a surface-mounted luminaire that can, in combination with a recessed frame, also be installed as a recessed luminaire. The most extensive and special luminaire in the Plus collection in a black version. Complete package including 7 pictograms. Suitable for wall and ceiling mounting. Can be used at any location, at any time, as an escape route sign. Use in indoor locations ONLY. A perfect choice thanks to its 75,000 burning hours. Matching products: A602, A603 en A604.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7

  • Downloads

    descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Plus
    • Article number E3D14603-B
    • Kind Plexiglass plate
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour Black
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Rated life time L70/B50 at 25 °C (h) 75000
    • Degree of protection (IP) IP20
    • Impact strength IK02
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 3,20
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,57
    • Recognition distance (m) 30
    • Nominal operation time (h) 75000 - 75000
    • Width (mm) 41,50
    • Height/depth (mm) 239,50
    • Length (mm) 323
    • Built-in height/depth (mm) 30
    • Type of wiring Ending
    • Number of poles 2
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
