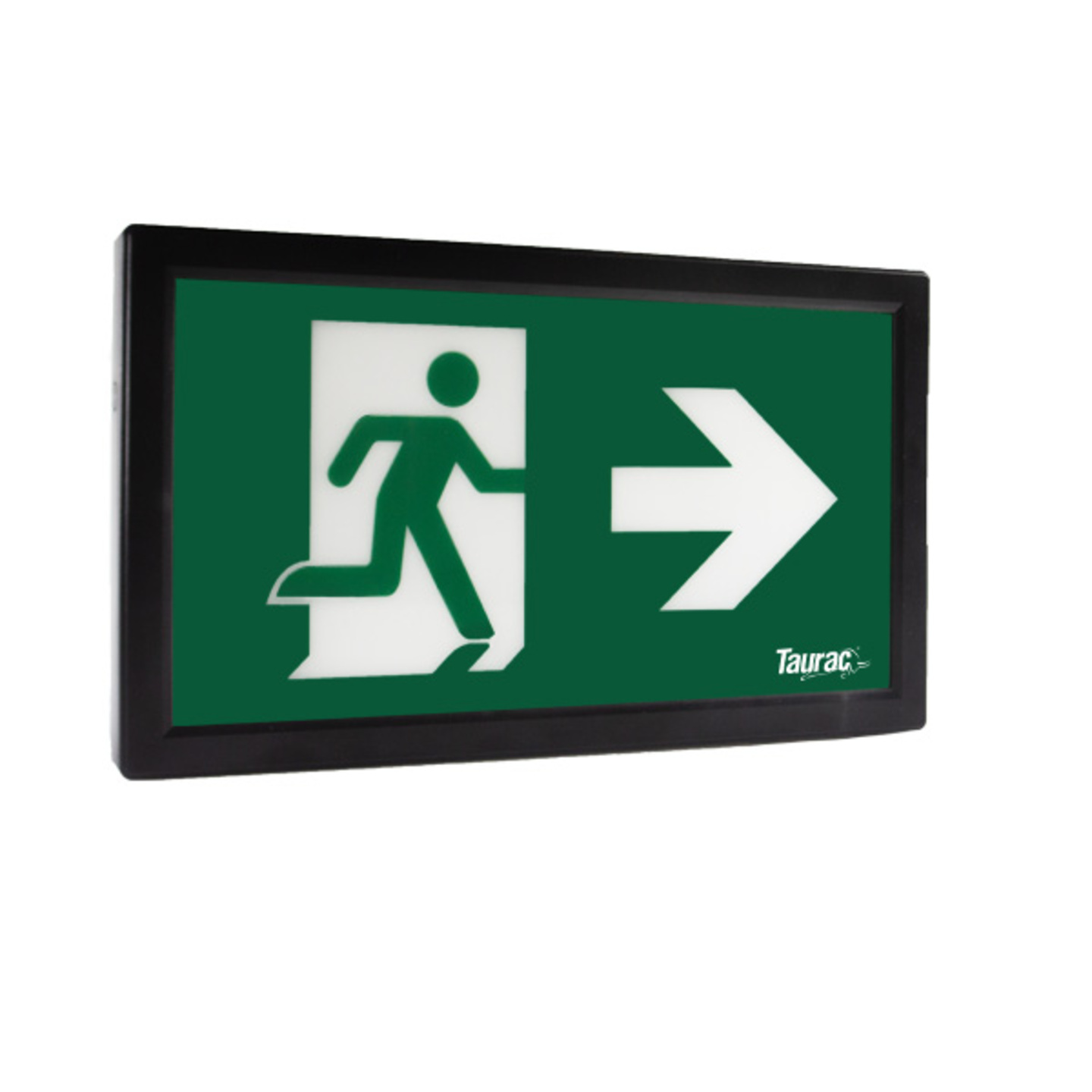

Taurac Flat Dallas Self contained Wall surface mounted IP20 3,5W 30 m Automatic self test black

Article number E3D14602-B
zoom_in Zoom

  • Description

    Where many situations involve mounting a standard bulkhead, the E3D14602 is the elegant solution with its flat and slim design. This black version with a LED strip at the bottom gives an extra safe situation for escape route applications. Easy to install wall mounted luminaire with decentralized battery and 75,000 hours of operation. 3 year warranty. Comes with pictograms.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Flat Dallas

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Plus
    • Article number E3D14602-B
    • Mounting method Wall surface mounted
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour Black
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Rated life time L70/B50 at 25 °C (h) 75000
    • Degree of protection (IP) IP20
    • Impact strength IK02
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 3,20
    • Luminous flux in standby mode (lm) 30
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,57
    • Recognition distance (m) 30
    • Nominal operation time (h) 75000 - 75000
    • Width (mm) 28
    • Height/depth (mm) 185
    • Length (mm) 320
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
Article number E3D14602-B

Taurac Flat Dallas Self contained Wall surface mounted IP20 3,5W 30 m Automatic self test black
