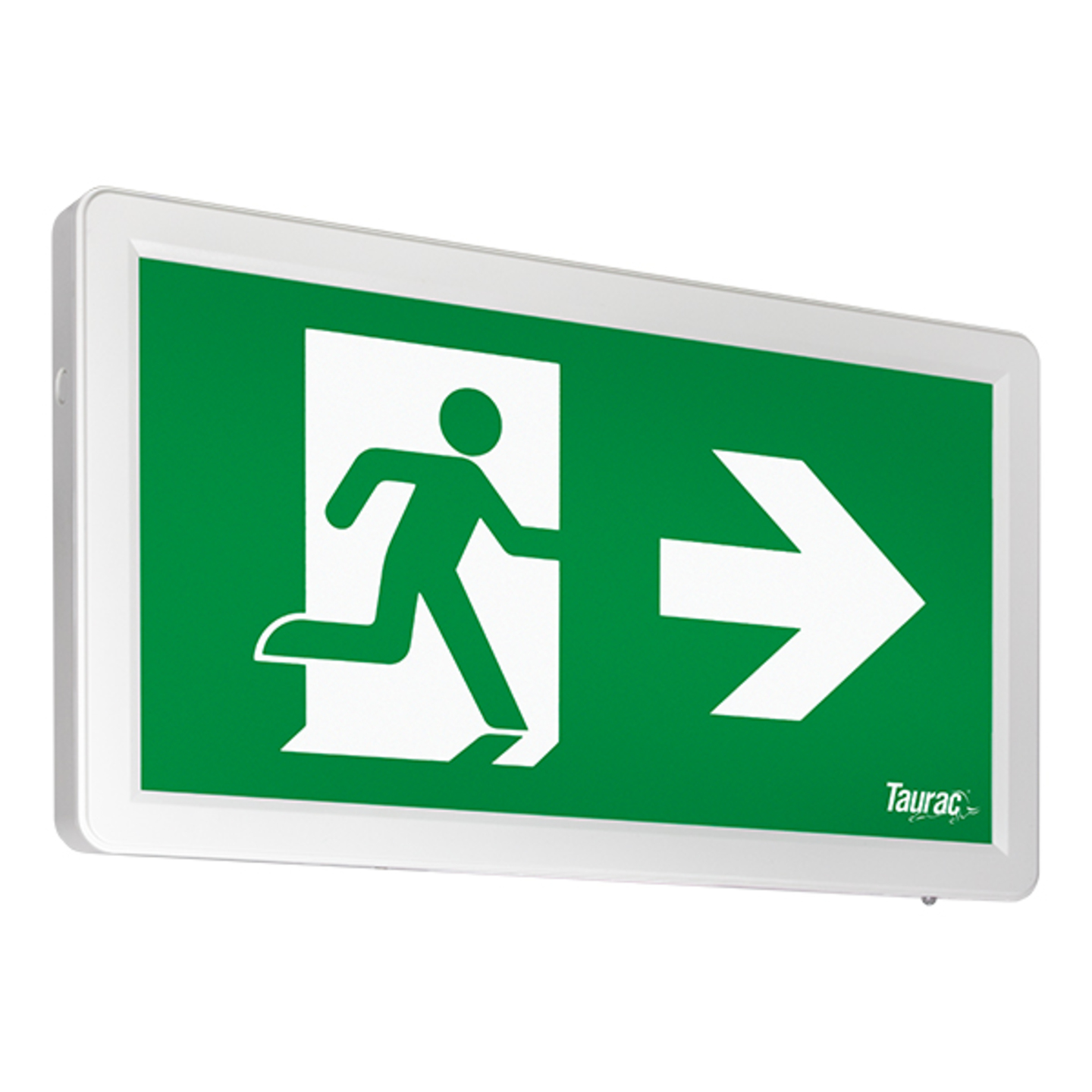

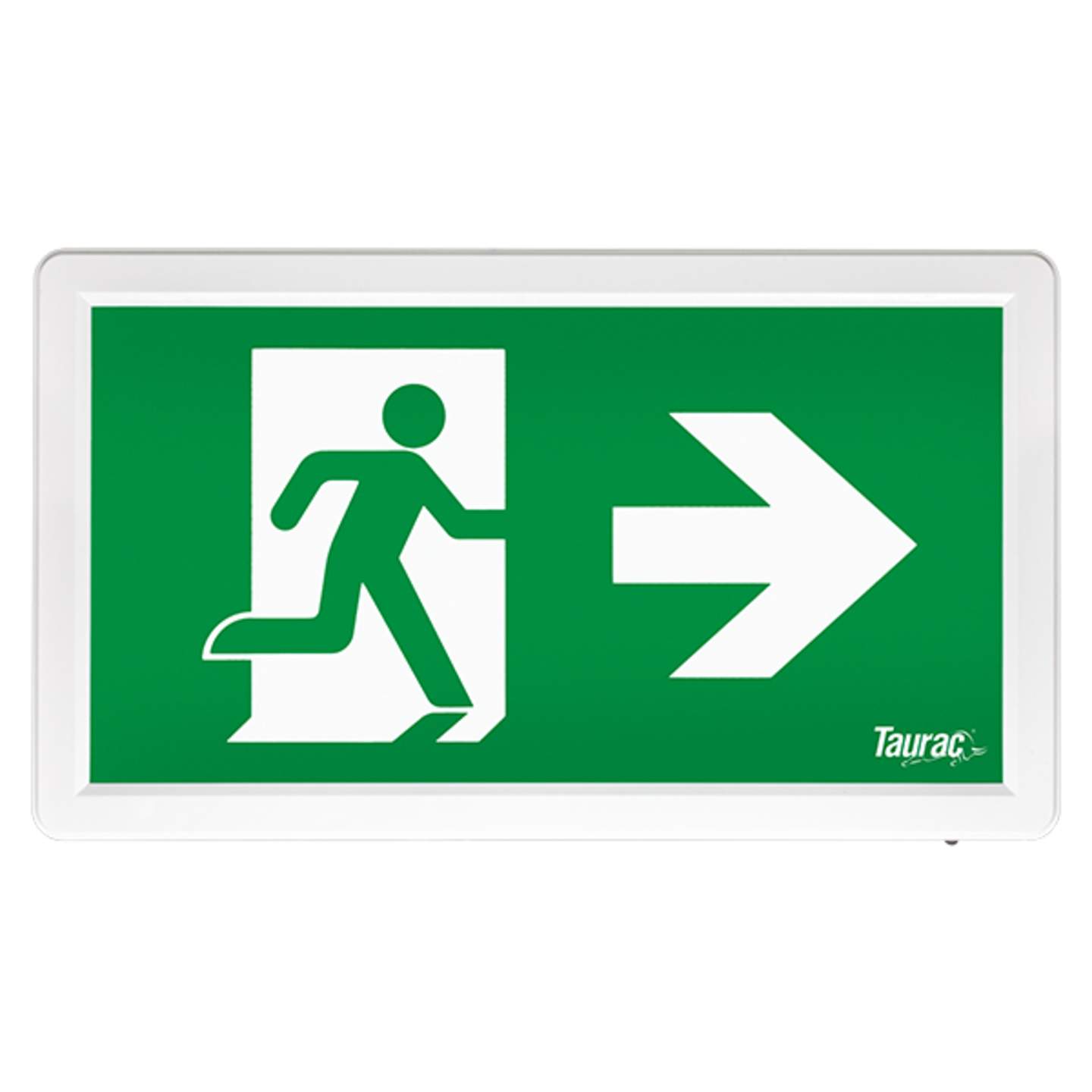

Taurac Flat Dallas Self contained Wall surface mounted IP20 3,5W 30 m Automatic self test

Article number E3D14602
zoom_in Zoom

  • Description

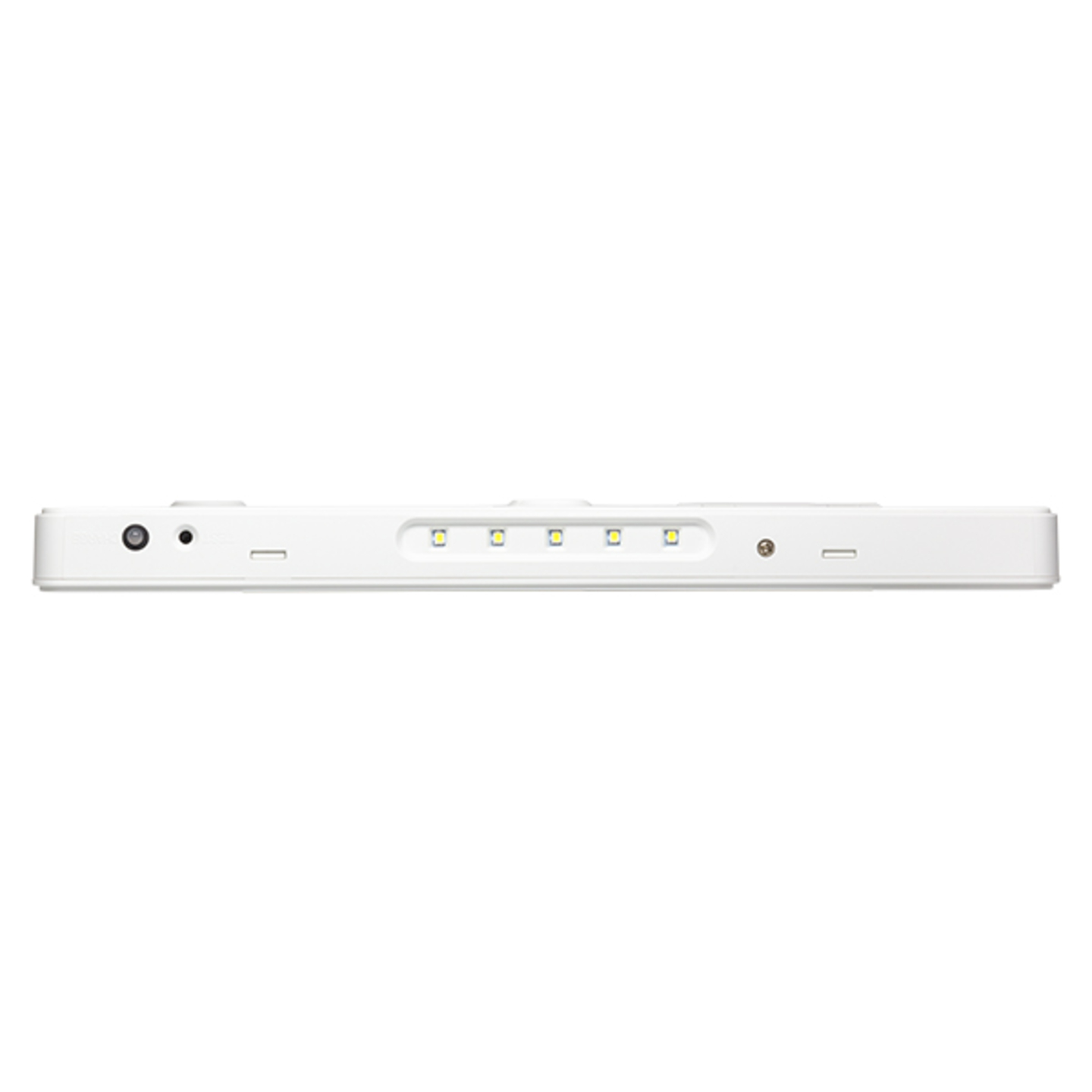

    Where many situations involve mounting a standard bulkhead, the E3D14602 is the elegant solution with its flat and slim design. The LED strip at the bottom gives an extra safe situation for escape route applications. Easy to install wall mounted luminaire with decentralized battery and 75,000 hours of operation. 3 year warranty. Comes with pictograms.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Flat Dallas

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Plus
    • Article number E3D14602
    • Kind Bulkhead
    • Mounting method Wall surface mounted
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Single-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Rated life time L70/B50 at 25 °C (h) 75000
    • Degree of protection (IP) IP20
    • Impact strength IK02
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 3,20
    • Luminous flux in standby mode (lm) 30
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,57
    • Recognition distance (m) 30
    • Nominal operation time (h) 75000 - 75000
    • Width (mm) 28
    • Height/depth (mm) 185
    • Length (mm) 320
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
