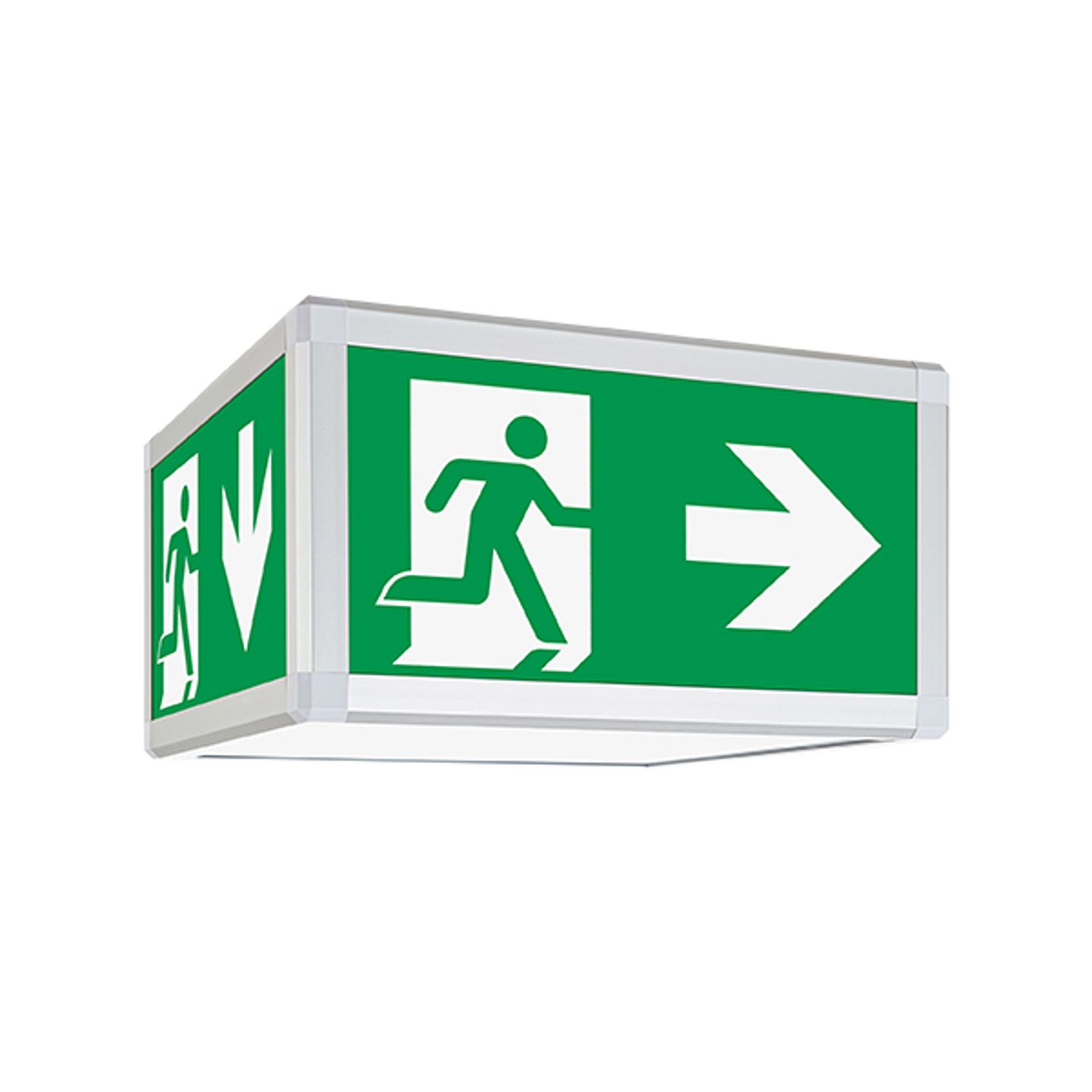

Rubiks Oslo Self contained Ceiling surface mounted, test button 30 m., IP20 incl. picto

Article number PK5D213111
zoom_in Zoom

  • Description

    Modern, cube-shaped luminaire housing with an anodized aluminum frame and a folding top section made of steel metal. The luminaire comes with three printed pictogram panes and one opal pane. The product has a very robust construction and is quick to install. The luminaire is available with protection class IP20 or IP54. The IP54 version is equipped with a special sealing upper part made of polycarbonate instead of steel metal. The luminaire is equipped with 4 x 3.5 watt high-power LED technology. Very powerful effective luminous flux of up to 950 lumens, for added safety. Comes complete with pictograms and is centrally controlled.

    Application
    Exhibition halls, event venues, large open spaces

    Type
    Rubiks Oslo

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Premium
    • Article number PK5D213111
    • Kind Cubus
    • Mounting method Ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • Type of indicator Four-sided
    • With pictogram Yes
    • Monitoring equipment Test button
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Aluminium
    • Housing colour White
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP20
    • Impact strength IK04
    • Protection class I
    • Max. system power (W) 10,80
    • Rated luminous flux according to IEC 62722-2-1 (lm) 950
    • Luminous flux in standby mode (lm) 170
    • Power factor 18
    • Recognition distance (m) 30
    • Nominal operation time (h) 1 - 1
    • Width (mm) 300
    • Height/depth (mm) 154
    • Length (mm) 300
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
