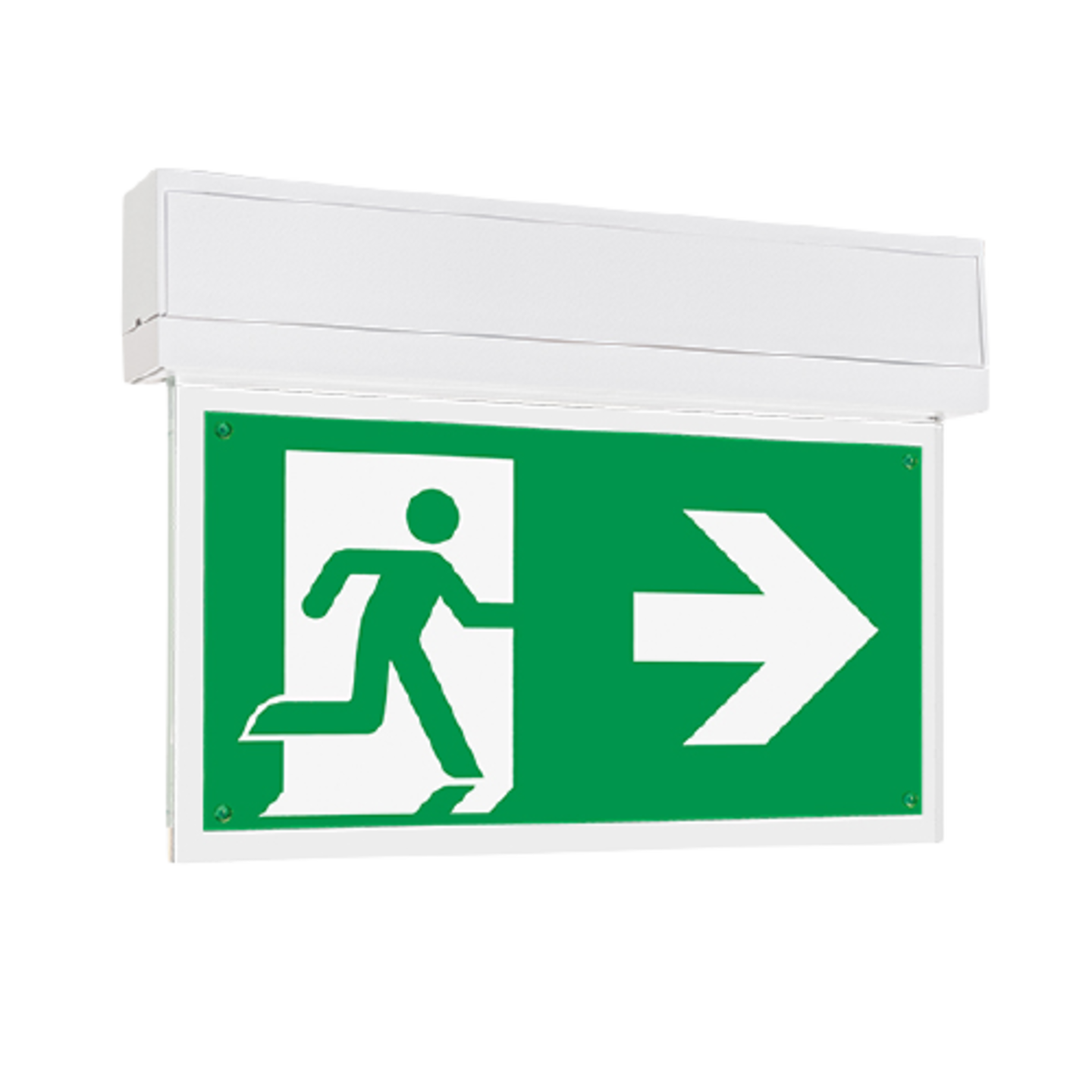

Plex Sevilla Self contained Ceiling / wall surface mounted, automatic self test 23 m., IP43 incl. picto

Article number PE7D512112
zoom_in Zoom

  • Description

    Plex Sevilla is a surface-mounted luminaire and can also be installed as a recessed luminaire in combination with recessed frame A561406 Plexiglas wall- and ceiling-mounted LED (emergency) lighting luminaire. Effective luminous flux is 130 lumens. Versatile and also easy to connect. 100,000 hours of operation and 5 year warranty. Centralized operation and only 1 watt power. Standard delivered with pictograms. Applications: offices, stores, schools, restaurants, museums, health care and educational institutions.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Plex Sevilla

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Premium
    • Article number PE7D512112
    • Kind Plexi glass plate
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Acrylic plate
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP43
    • Impact strength IK04
    • Protection class II
    • Max. system power (W) 2,20
    • Rated luminous flux according to IEC 62722-2-1 (lm) 130
    • Power factor 4,50
    • Recognition distance (m) 23
    • Nominal operation time (h) 1 - 1
    • Width (mm) 265
    • Height/depth (mm) 191
    • Length (mm) 37
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
