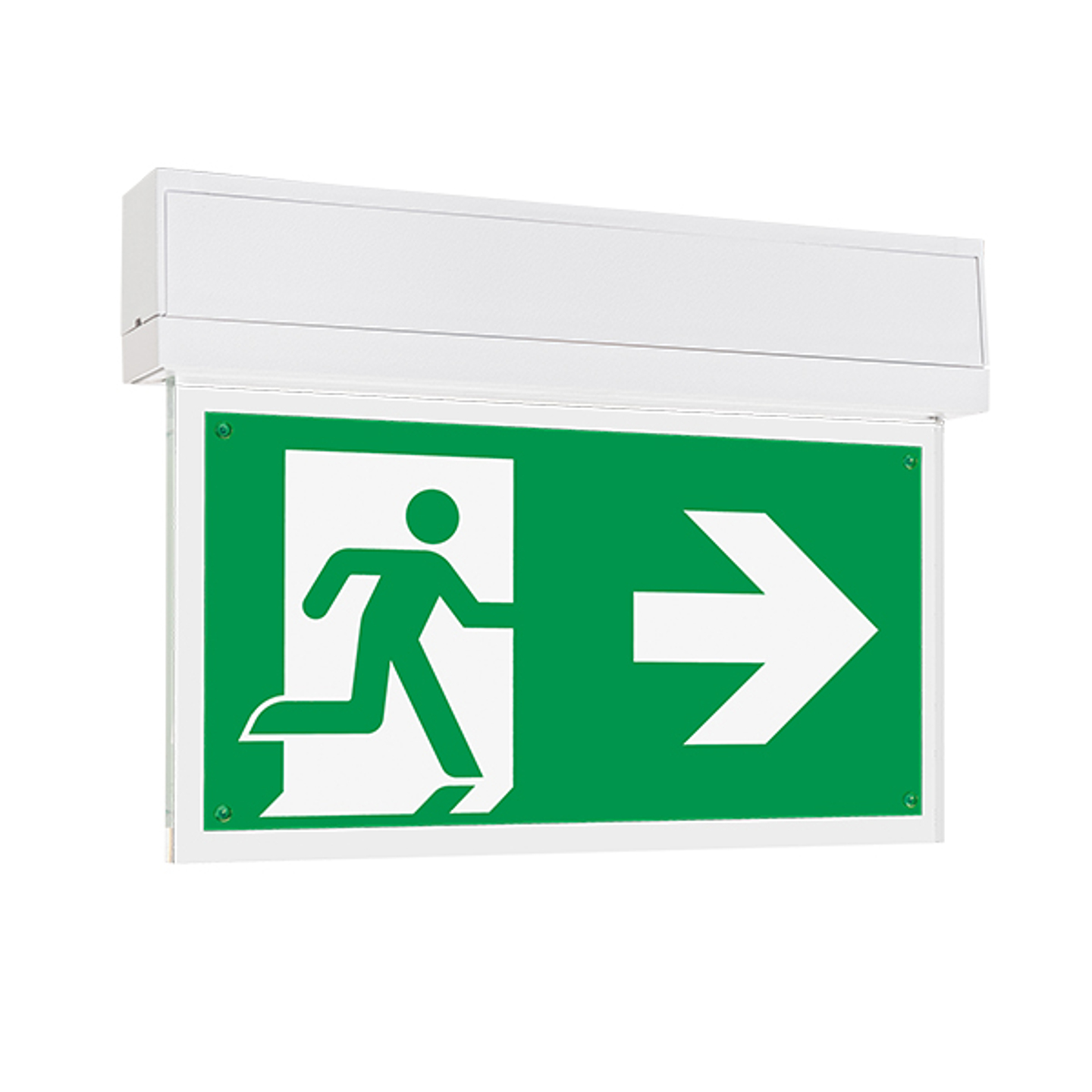

Plex Sevilla Central battery system Ceiling / wall surface mounted, stand. 23 m., IP43 incl. picto

Article number PE7C592110

Zoom

Description

Plexiglas wall and ceiling mounted LED (emergency) lighting fixture. Effective luminous flux is 130 lumens. Versatile and also easy to connect. 100,000 hours of operation and 5 years warranty. Centralized operation and only 1 watt power. Standard delivered with pictograms. Applications: offices, stores, schools, restaurants, museums, health care and educational institutions.

Application
Offices, stores, schools, restaurants, museums, care- and educational institutions

Type
Plex Sevilla

Approvals
Downloads

Download Factsheet Download Handleiding Testprocedures
Specifications
Brand Taurac Premium

Article number PE7C592110

Kind Plexi glass plate

Mounting method Wall surface mounting/ceiling surface mounting

Function Escape route signage

Suitable for labelling type Acrylic plate

Type of indicator Single/double-sided

With pictogram Yes

Monitoring equipment None

Power supply system Central (central battery)

Battery quality Lead

Lamp type LED not exchangeable

With light source Yes

Lamp holder None

Housing material Plastic

Housing colour White

Material cover Without cover

Voltage type DC

Nominal voltage (V) 230 - 230

Type of control gear LED operating device current-controlled

Light distributor None

Rated life time L70/B50 at 25 °C (h) 100000

Degree of protection (IP) IP43

Impact strength IK04

Protection class II

Max. system power (W) 2,50

Rated luminous flux according to IEC 62722-2-1 (lm) 130

Power factor 4,50

Recognition distance (m) 23

Width (mm) 265

Height/depth (mm) 191

Length (mm) 37

Type of wiring Suitable for through wiring

Connection type Plug-in connection

Unit Piece

Warranty (months) 60
