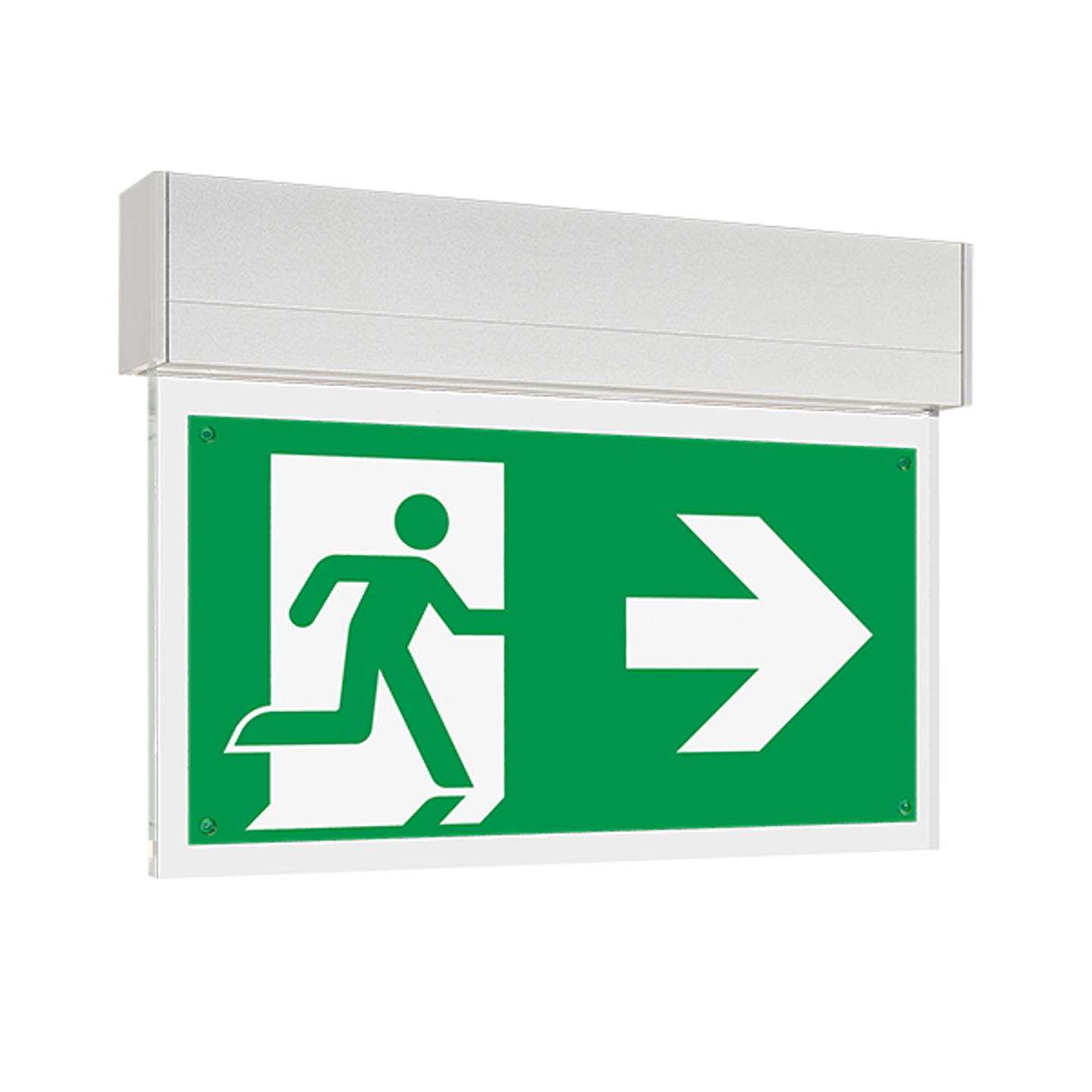

Plex Naples self contained Ceiling / wall surface mounted Automatic self test 23 m. IP40 incl. picto

Article number PE6D512112
zoom_in Zoom

  • Description

    Elegant Acrylic glass plate in an aluminum housing. Suitable for both wall and ceiling mounting. Very reliable and energy efficient. Without problems you connect this escape route indicator. IP40 and a recognition distance of 23 meters. Applications: offices, stores, schools, restaurants, museums, health care and educational institutions

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Plex Naples

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7 keurmerk_8

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Premium
    • Article number PE6D512112
    • Kind Plexi glass plate
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Acrylic plate
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour Aluminium
    • Material cover Without cover
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor None
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP40
    • Impact strength IK04
    • Protection class I
    • Max. system power (W) 2,20
    • Rated luminous flux according to IEC 62722-2-1 (lm) 130
    • Power factor 4,50
    • Recognition distance (m) 23
    • Nominal operation time (h) 1 - 1
    • Width (mm) 256
    • Height/depth (mm) 189
    • Length (mm) 35
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
