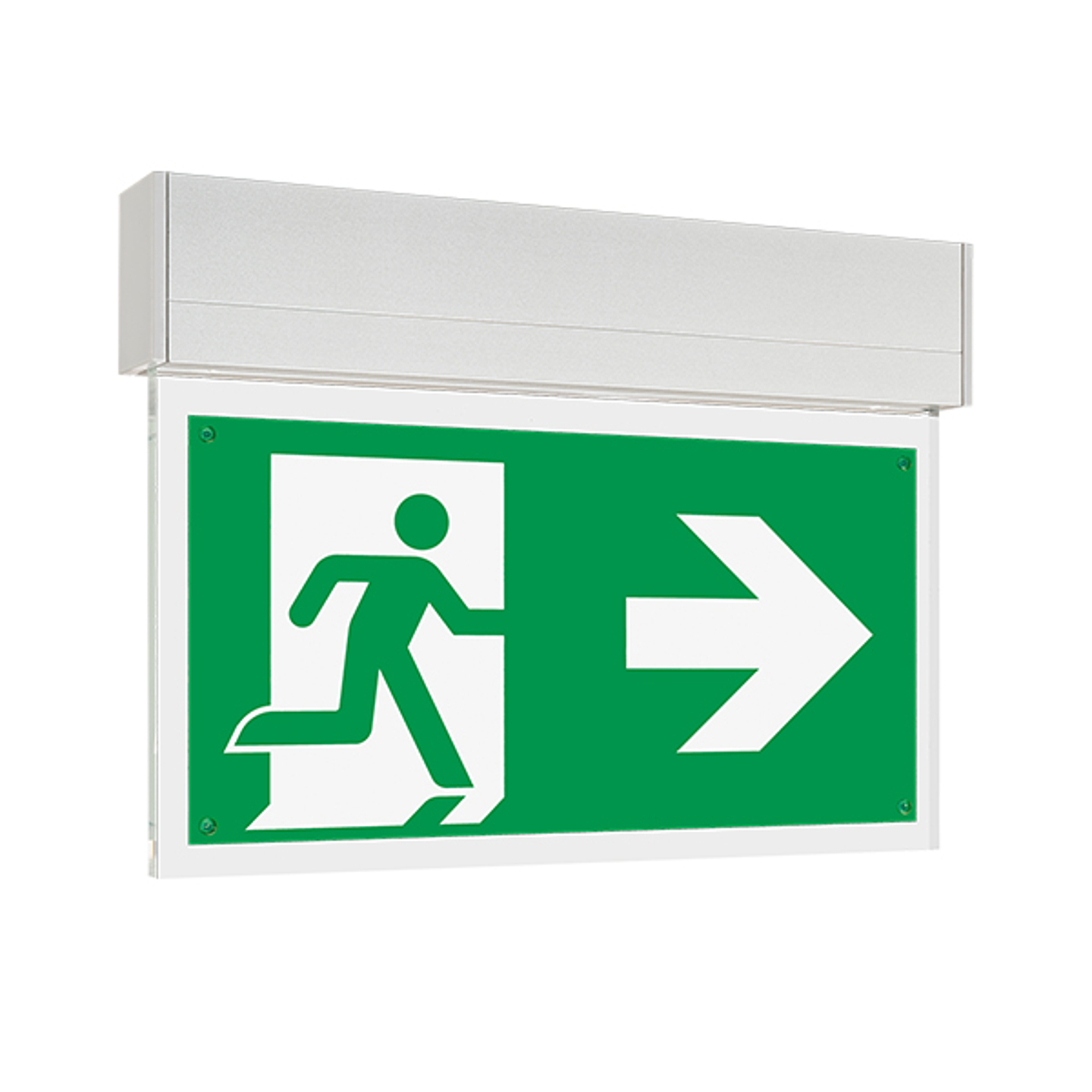

Plex Naples central battery system Ceiling / wall surface mounted ELC 30 m. IP40 incl. picto

Article number PE6C593115

Zoom

Description

Elegant Acrylic glass plate in an aluminum housing. Suitable for both wall and ceiling mounting. Very reliable and energy efficient. Without problems you connect this escape route indicator. IP40 and a recognition distance of 23 meters. Applications: offices, stores, schools, restaurants, museums, health care and educational institutions

Application
Offices, stores, schools, restaurants, museums, care- and educational institutions

Type
Plex Naples

Approvals
Downloads

Download Factsheet Download Handleiding Testprocedures
Specifications
Brand Taurac Premium

Article number PE6C593115

Kind Plexi glass plate

Mounting method Wall surface mounting/ceiling surface mounting

Function Escape route signage

Suitable for labelling type Acrylic plate

Type of indicator Single/double-sided

With pictogram Yes

Monitoring equipment Safety module for monitoring (central feeded system)

Wiring system Continuous circuit/emergency circuit

Power supply system Central (central battery)

Battery quality Lead

Lamp type LED not exchangeable

With light source Yes

Lamp holder None

Housing material Plastic

Housing colour Aluminium

Material cover Without cover

Voltage type DC

Nominal voltage (V) 230 - 230

Type of control gear LED operating device current-controlled

Light distributor None

Rated life time L70/B50 at 25 °C (h) 100000

Degree of protection (IP) IP40

Impact strength IK04

Protection class I

Max. system power (W) 2,80

Rated luminous flux according to IEC 62722-2-1 (lm) 190

Power factor 5,50

Recognition distance (m) 30

Width (mm) 332

Height/depth (mm) 228

Length (mm) 35

Type of wiring Suitable for through wiring

Connection type Plug-in connection

Unit Piece

Warranty (months) 60
