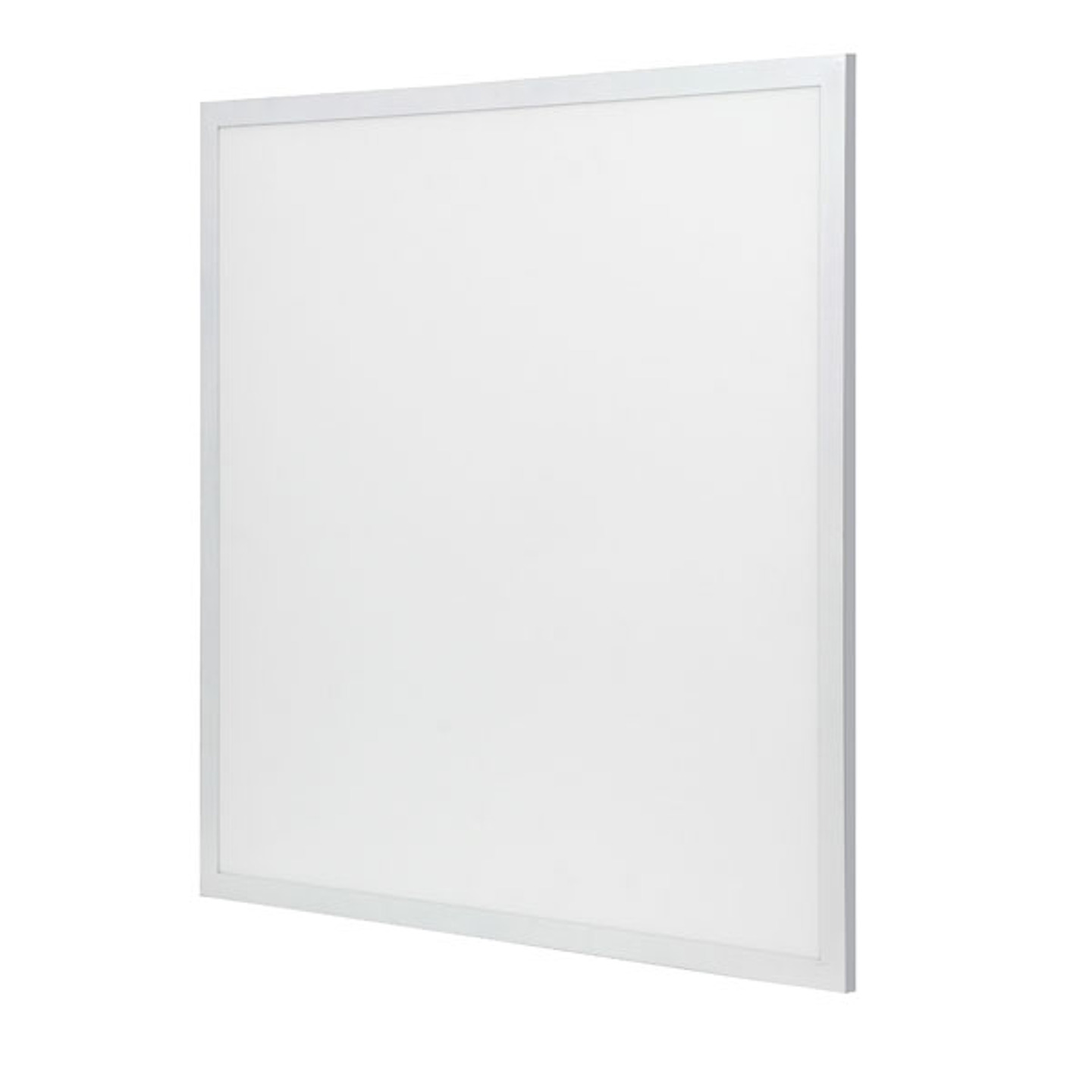

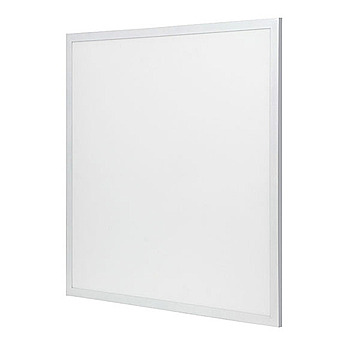

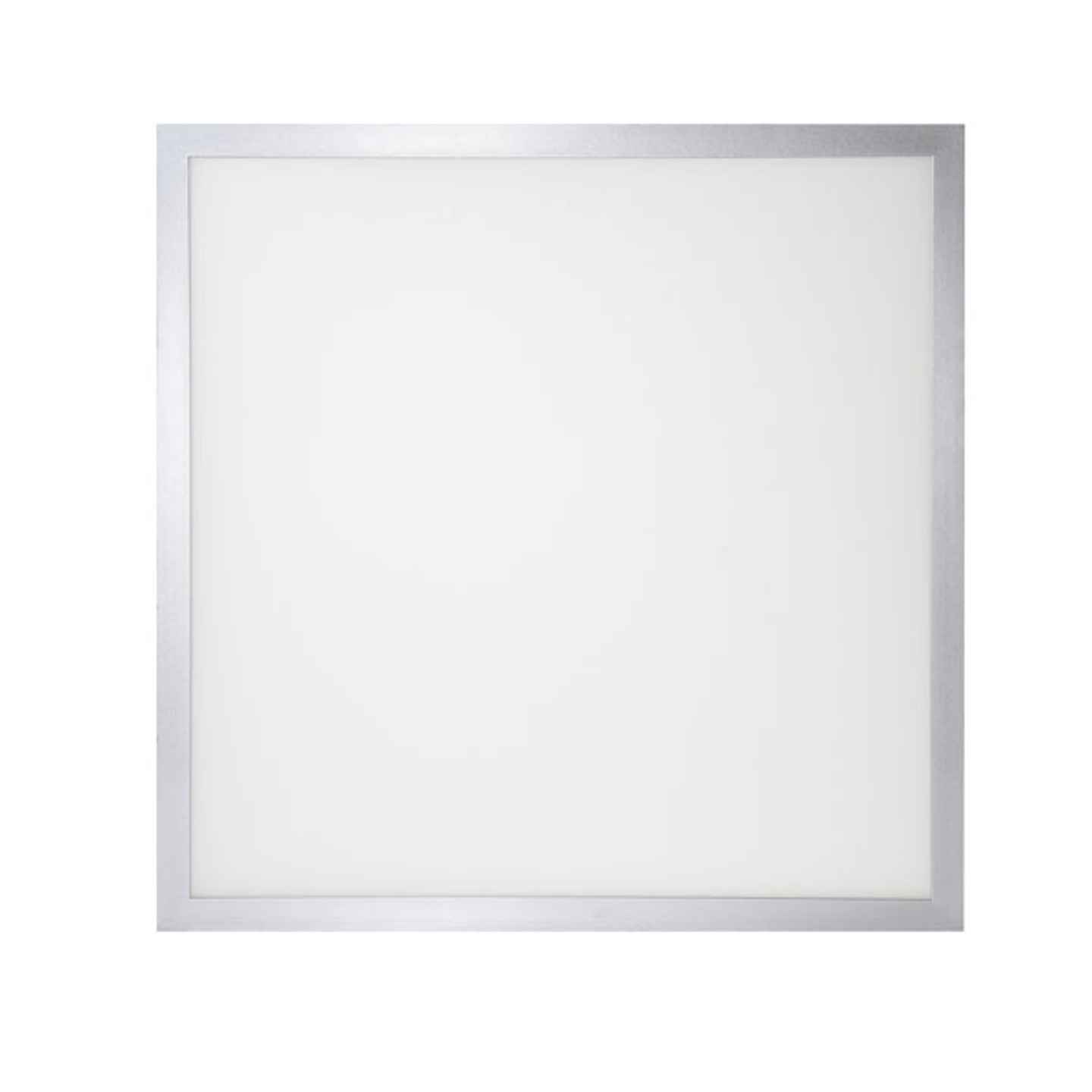

Libero LED Panel 600*600 30W 3000K Ugr<19

Article number P01111230211
zoom_in Zoom

  • Description

    Very suitable for applications in projects where there is a limited installation height. Taurac's Hereford panels are available in UGR 19 / 22 versions, DALI, Emergency lighting and in 3000 or 4000 Kelvin. By using A-brand Tridonic drivers you will experience no flicker and you are assured of top quality. 5 year warranty.

  • Downloads

    descriptionDownload Factsheet descriptionDownload Flyer

  • Specifications

    • Brand Taurac LED Verlichting
    • Article number P01111230211
    • Suitable for suspended mounting Yes
    • Suitable for ceiling mounting Yes
    • Suitable for built-in mounting Yes
    • Suitable for surface mounting Yes
    • Suitable for workplace according to EN 12464-1 Yes
    • Lamp type LED not exchangeable
    • With light source Yes
    • Housing material Aluminium
    • Surface protection housing Plastic-coated
    • Housing colour White
    • Material cover Plastic matt/satinized
    • Type of grid None
    • Voltage type AC
    • Nominal voltage (V) 198 - 264
    • Nominal current (mA) 700 - 700
    • Type of control gear LED operating device current-controlled
    • With control gear Yes
    • No dim function Yes
    • Light distributor Diffuser lens/optic/panel
    • Light sharing Symmetric

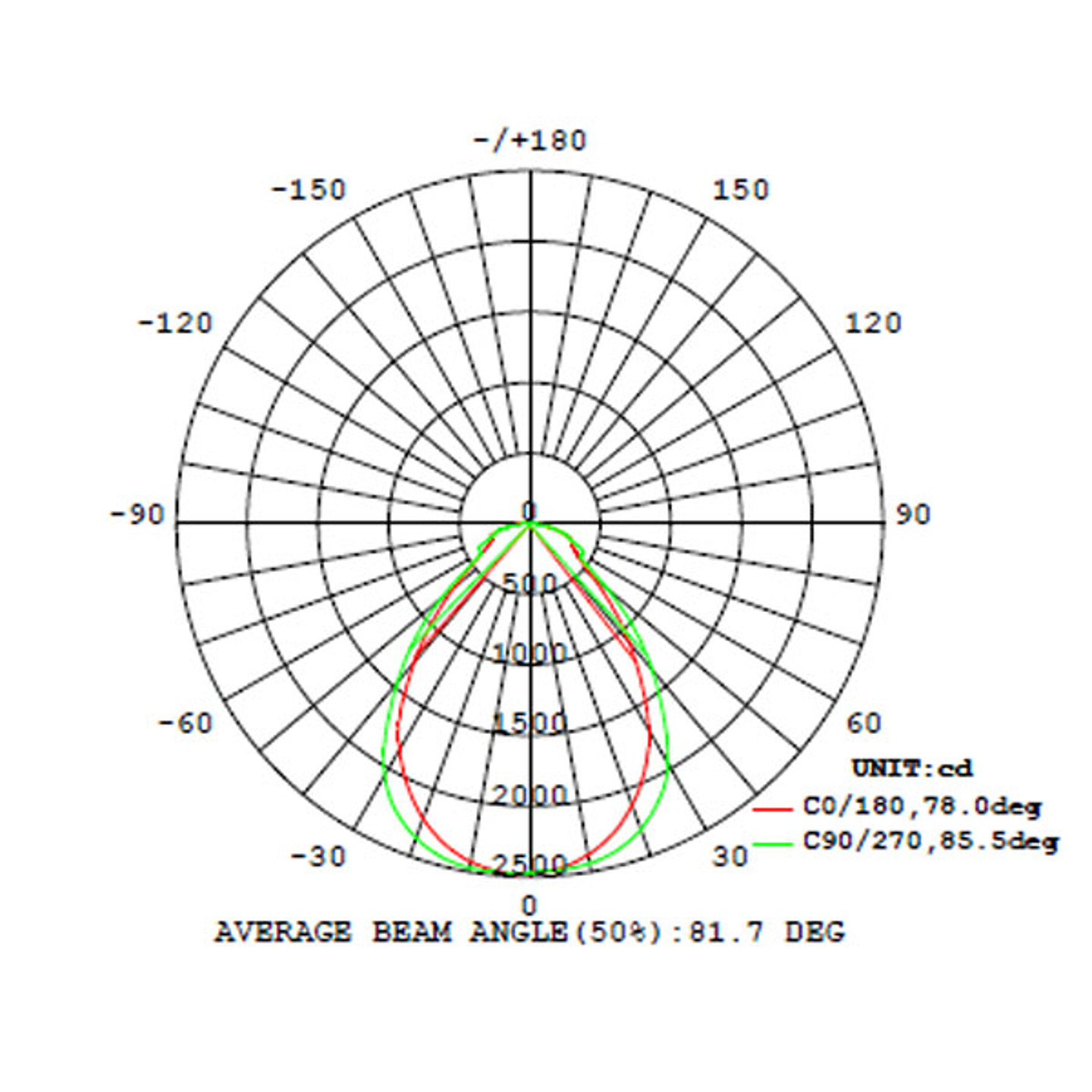

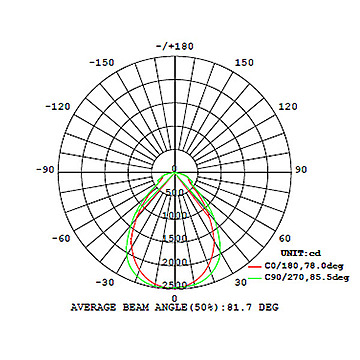

    • Beam angle Extreme wide beam >80°
    • Colour consistency (McAdam ellipse) SDCM3
    • Light outlet Direct
    • Rated life time L70/B50 at 25 °C (h) 70000
    • Energy Efficiency Index (EEI) 0,10
    • Rated life time L80/B10 at 25 °C (h) 50000
    • Degree of protection (IP) IP20
    • Impact strength IK06
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) -65 - -65
    • Filament test according to IEC 60695-2-11 None
    • Max. system power (W) 30
    • Luminaire efficacy (lm/W) 120
    • Rated luminous flux according to IEC 62722-2-1 (lm) 3600
    • Colour of light RGB
    • Colour temperature (K) 3000 - 3000
    • Colour rendering index CRI 80-89
    • Power factor 0,95
    • Width (mm) 596
    • Height/depth (mm) 10
    • Length (mm) 596
    • Built-in length (mm) 596
    • Built-in width (mm) 596
    • Built-in height/depth (mm) 10
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Push-in clamp
    • Total harmonic distortion 5
    • Photobiological safety according to EN 62471 RG2
    • Unified Glare Ratio (UGR) 19
    • Unit Piece
    • Warranty (months) 60
