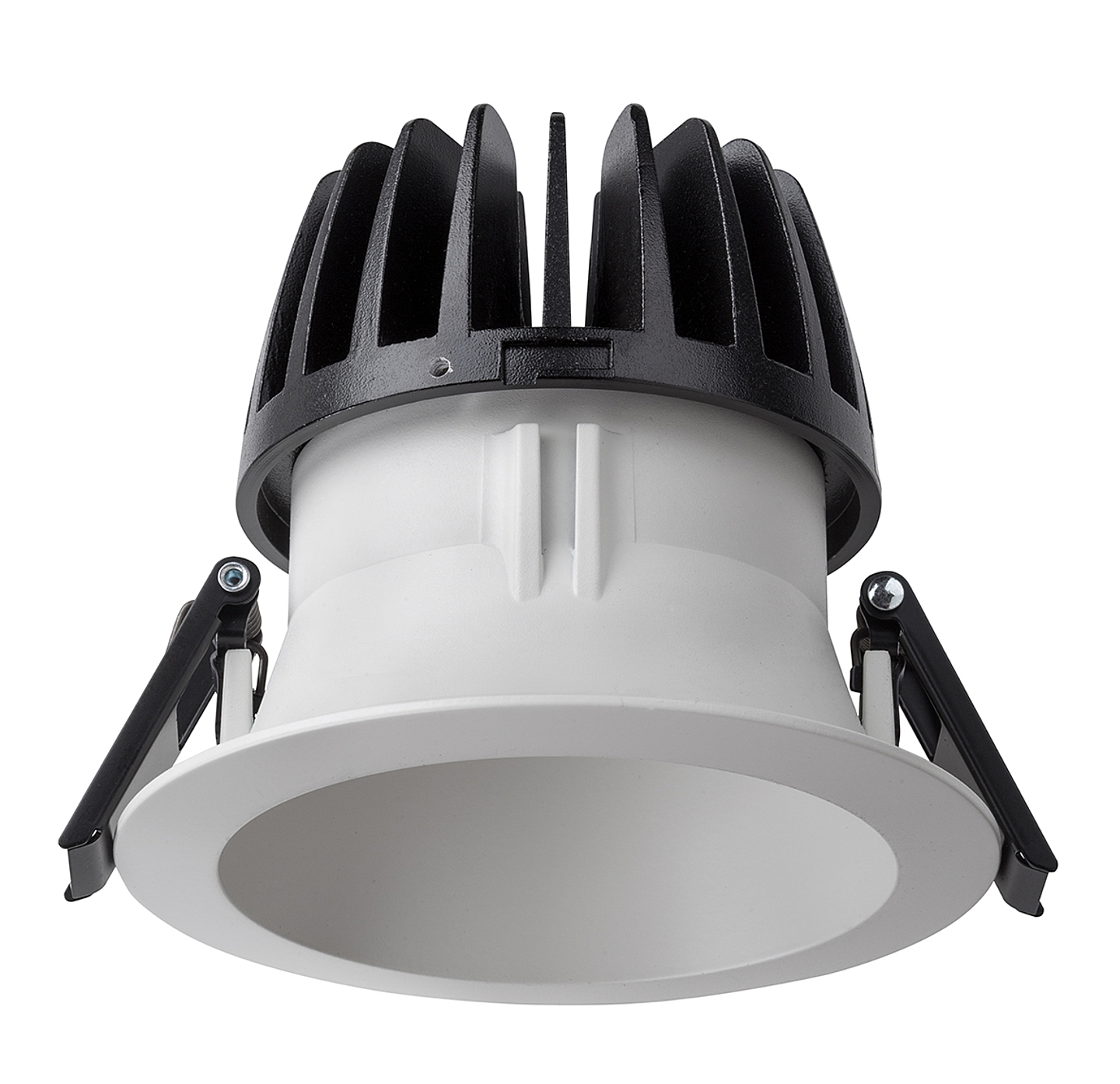

Downlight Arrow Ø100 1050lm 10W 4000K DALI

Article number D01117021431
  • Description

    Very suitable for renovation projects because the LED head and cone are interchangeable. This allows you to continue to use your existing system ceiling, with the desired light level. Comes standard with a high quality switchable LED driver from Tridonic. Very robust because of the metal housing, available in white and black and also has a very luxurious look. The downlighters can be executed in the versions "standard on-off", "DALI dimmable", "emergency lighting" and combinable. Saves up to 60% compared to current lighting. Average of 50,000 hours and quick payback.

  • Downloads

  • Specifications

    • Brand Taurac LED Verlichting
    • Article number D01117021431
    • Suitable for built-in mounting Yes
    • Suitable for ceiling mounting Yes
    • Adjustability Not adjustable
    • Lamp type LED exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Aluminium
    • Surface protection Lacquered
    • Housing colour White
    • Material cover Other
    • Voltage type AC
    • Nominal voltage (V) 200 - 240
    • Type of control gear LED operating device current-controlled
    • With control gear Yes
    • Dimming DALI Yes
    • Dimming DSI Yes
    • Dimming programmable Yes
    • Dimming Touch and Dim Yes
    • Dimming with push-button Yes
    • Reflector White
    • Light distributor Diffuser lens/optic/panel
    • Light sharing Symmetric
    • Beam angle Wide beam 41-80°
    • Light outlet Direct
    • Energy efficiency class A++
    • Total harmonic distortion 8
    • Rated life time L80/B10 at 25 °C (h) 50000
    • Degree of protection (IP) IP20
    • Impact strength IK03
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) -15 - 50
    • Max. system power (W) 10
    • Colour of light White
    • Colour temperature (K) 4000 - 4000
    • Colour rendering index CRI 80-89
    • Luminous flux (lm) 1050 - 1050
    • Rated luminous flux according to IEC 62722-2-1 (lm) 1050
    • Power factor 0
    • Height/depth (mm) 84
    • Built-in diameter (mm) 100
    • Outer diameter (mm) 120
    • Built-in height/depth (mm) 84
    • Type of wiring Ending
    • Conductor cross section (mm²) 0,50
    • Connectable conductor cross section (mm²) 0,50 - 1,50
    • Connection type Other
    • Filament test according to IEC 60695-2-11 650 °C - 30 s
    • Luminaire efficacy (lm/W) 103
    • Photobiological safety according to EN 62471 RG2
    • Suitable for workplace according to EN 12464-1 Yes
    • Colour consistency (McAdam ellipse) SDCM3
    • Unified Glare Ratio (UGR) 19
    • Unit Piece
    • Warranty (months) 60
