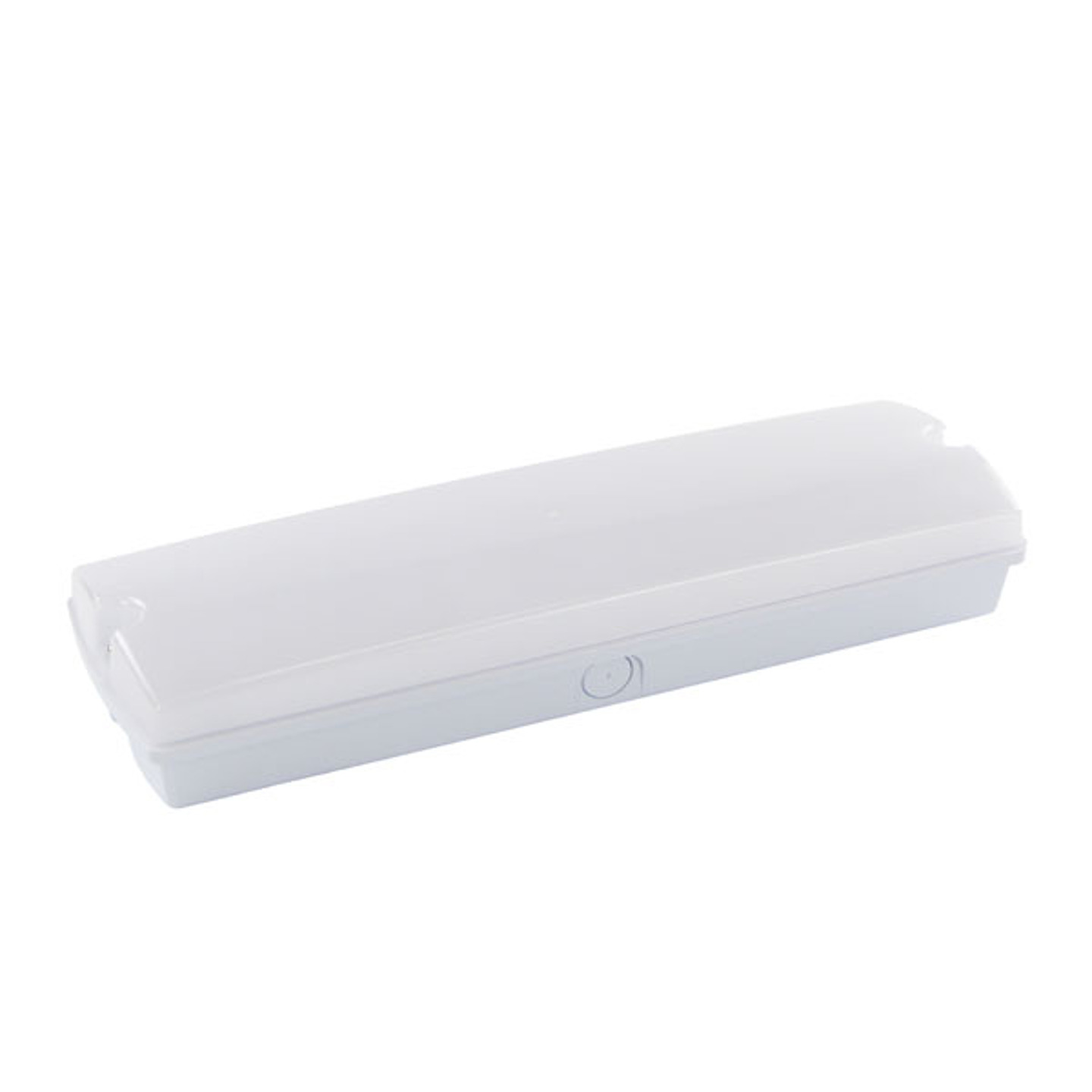

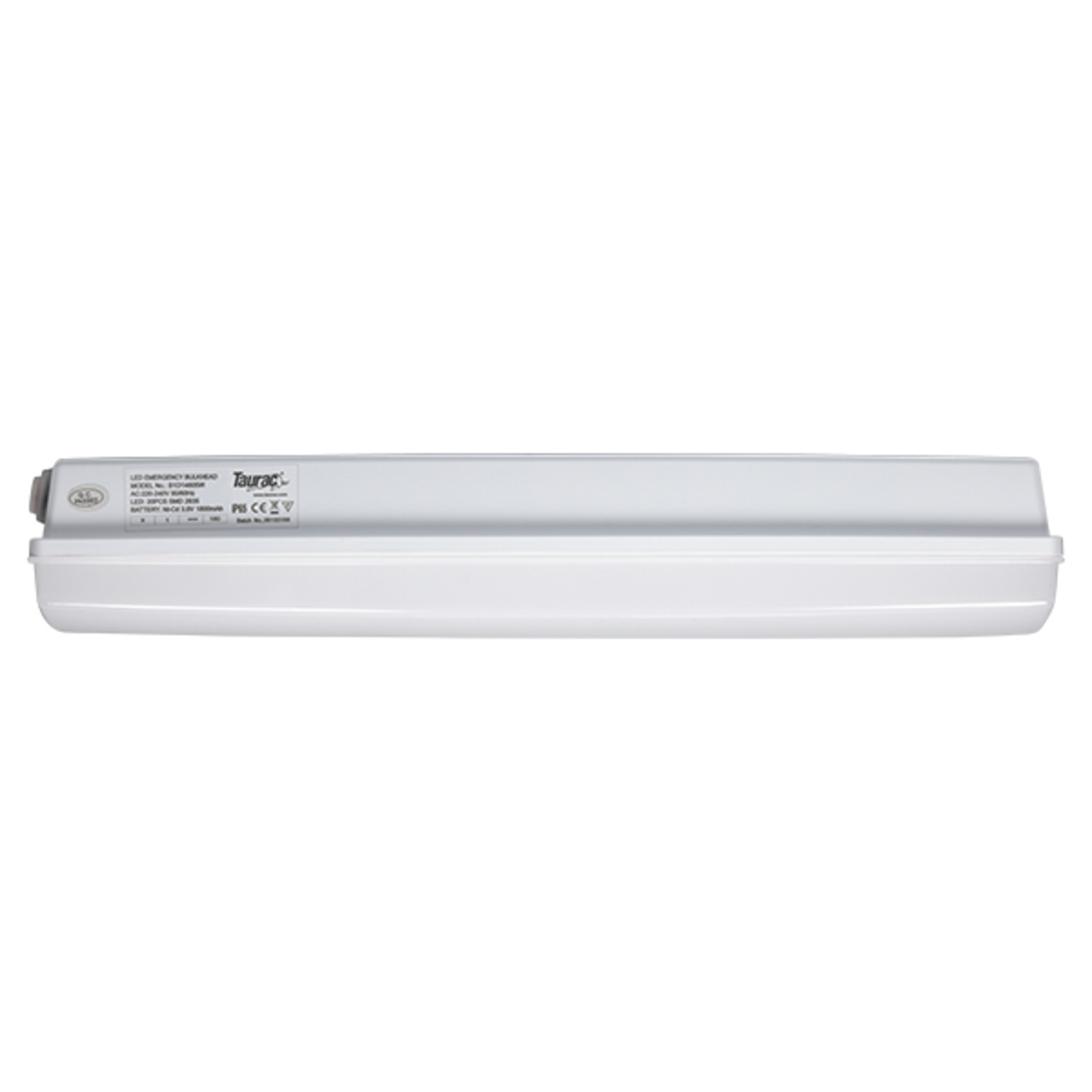

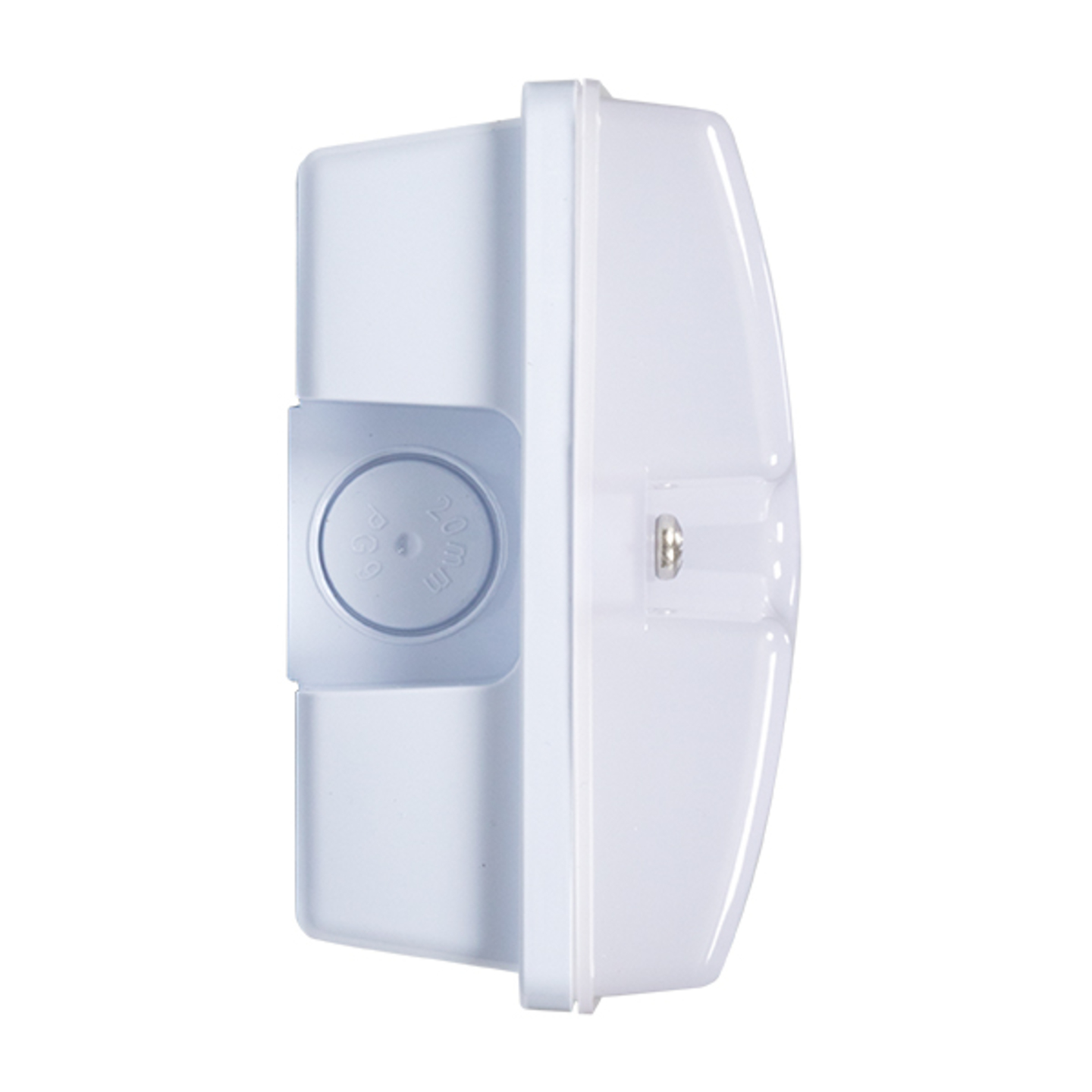

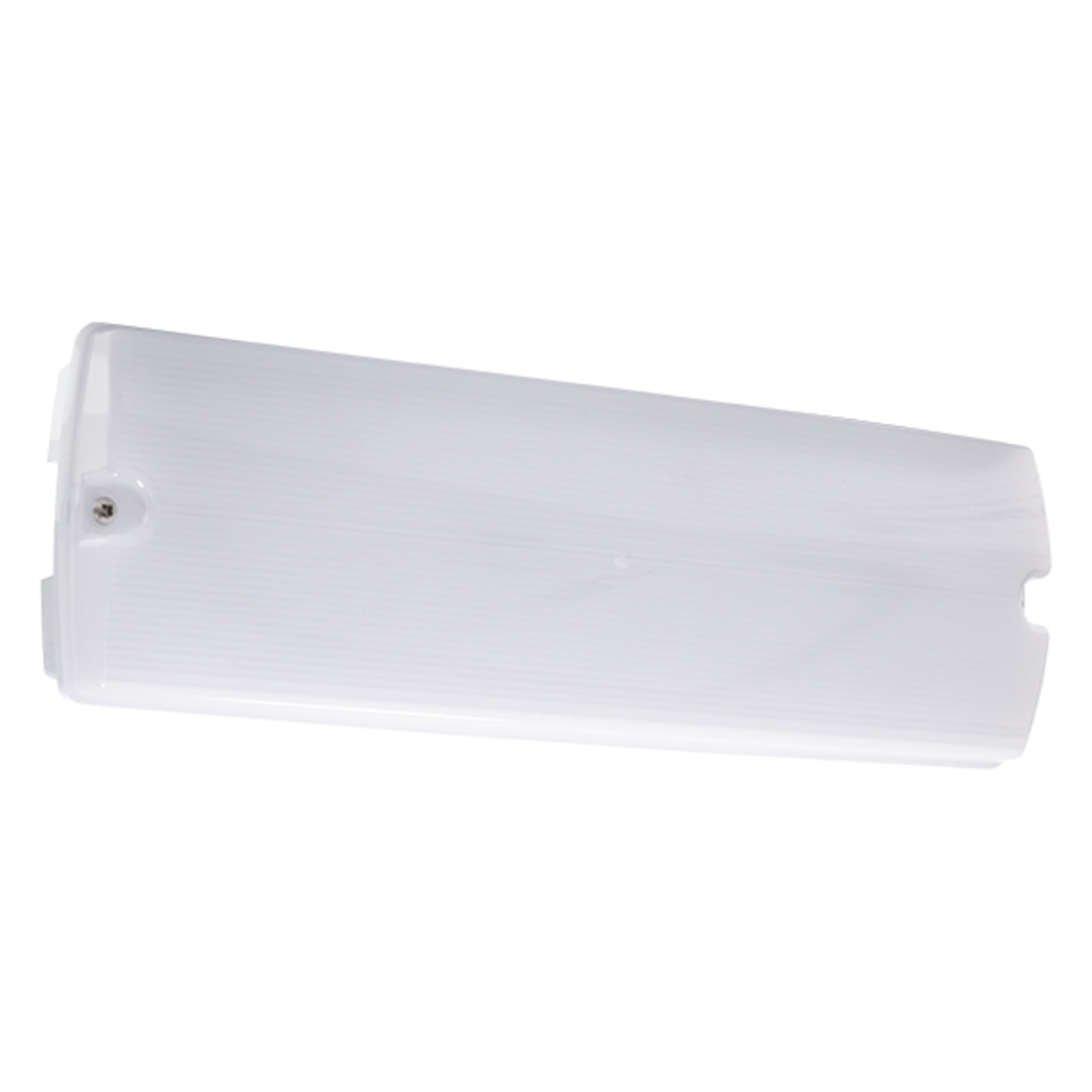

Bulk Melbourne Self contained Wall / ceiling surface mounted IP65 6W Test button Opal cover

Article number B1D14605W
zoom_in Zoom

  • Description

    One of the runners of the Taurac Basic line. With a nominal lifespan of 50,000 burning hours, this is a real winner. The automatic self-diagnosis ensures greater ease of use. Suitable for both wall and ceiling mounting. Bulkhead executed with opal white diffuser.

    Application
    Offices, stores, schools, restaurants, museums, care and educational institutions

    Type
    Bulk Melbourne

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5

  • Downloads

    descriptionDownload Spacingtabellen descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Basic
    • Article number B1D14605W
    • Kind Bulkhead
    • Mounting method Surface mounting/recessed mounting
    • Function Escape route lighting/signage
    • Suitable for labelling type Sticker
    • Type of indicator Single-sided
    • With pictogram Yes
    • Monitoring equipment Test button
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiCd
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, opal
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Rated life time L70/B50 at 25 °C (h) 50000
    • Degree of protection (IP) IP65
    • Impact strength IK07
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 6
    • Rated luminous flux according to IEC 62722-2-1 (lm) 300
    • Luminous flux in standby mode (lm) 200
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,80
    • Recognition distance (m) 20
    • Nominal operation time (h) 50000 - 50000
    • Width (mm) 110
    • Height/depth (mm) 60
    • Length (mm) 345
    • Built-in height/depth (mm) 30
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
